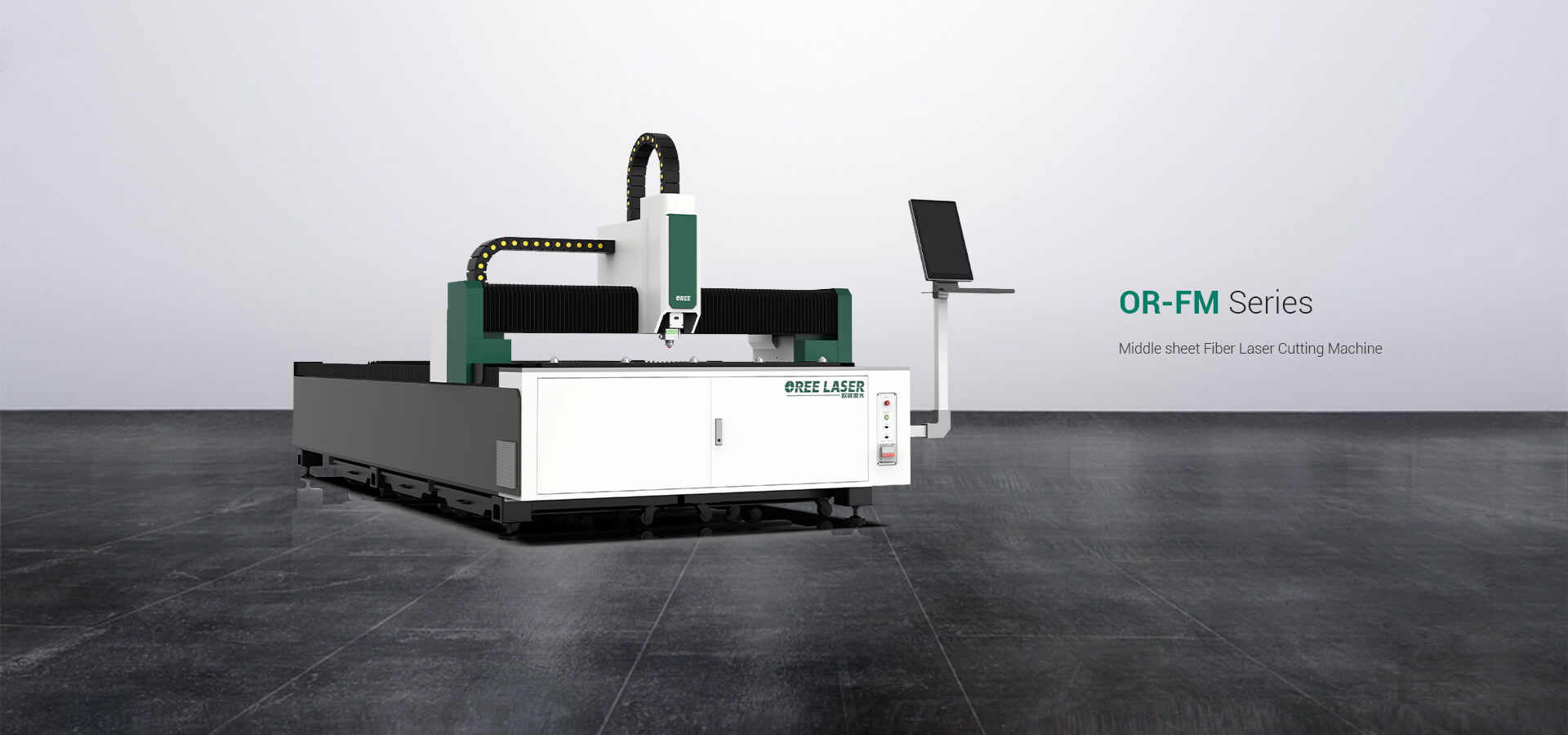

Middle sheet Fiber Laser Cutting Machine
In order to improve the beam structure and optimize its dynamic performance, while ensuring the stability of the beam structure, the fourth-generation aviation aluminum alloy beam was developed using finite element analysis. The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
The time and frequency of lubrication can be adjusted through the central control system, and comprehensive multi-point lubrication for guide rails, sliders, screws, racks, etc., and automatic return and collection of waste lubricating fluid.
The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.

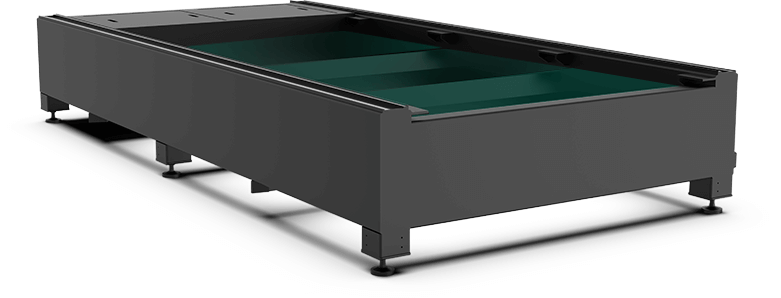

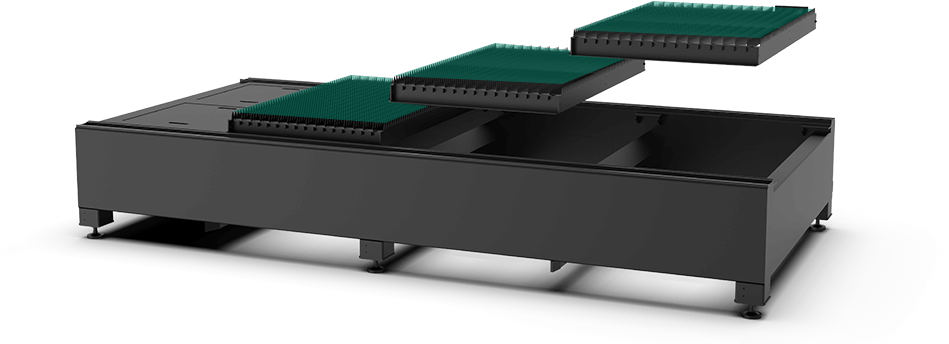

It adopts 8mm high-strength steel pipe laser cutting, plug-in bed structure. Three welding processes are adopted, such as through welding, and the weld is not easy to crack. After stress annealing and natural aging treatment, internal stress is eliminated, so that the bed maintains good mechanical properties, with good tensile properties, toughness and hardness.
【1】The maximum load per square meter of the operating platform is 150KGS;
【2】Effectively resist the huge inertia brought to the bed by high-frequency and high-speed commutation, and the bed is more stable;
【3】 Use plug-in welded bed, through welding and other 3 welding processes
|Repeat Repositioning Accuracy||±0.02mm|
|Accuracy of Positioning||±0.03mm|
|Max Movement Speed||100m/min|
|Working Table||Blade table|
|Repeat Repositioning Accuracy||±0.000787inch|
|Accuracy of Positioning||±0.001181inch|
|Max Movement Speed||3937 inch/min|
|Working Table||Blade table|
The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.More Details

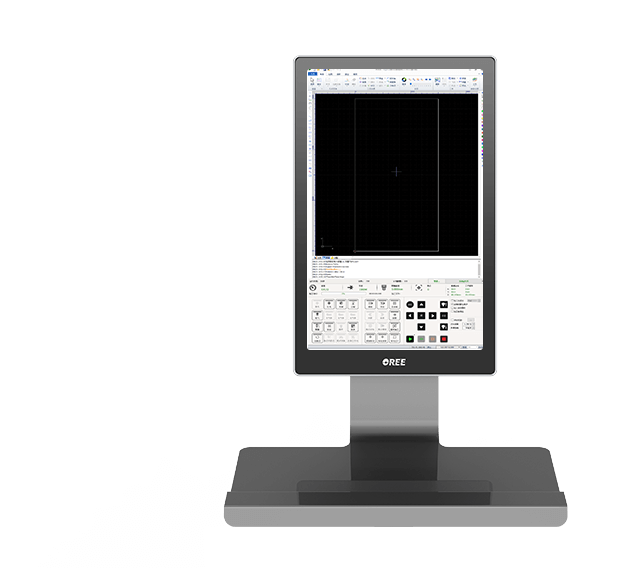

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.More Details

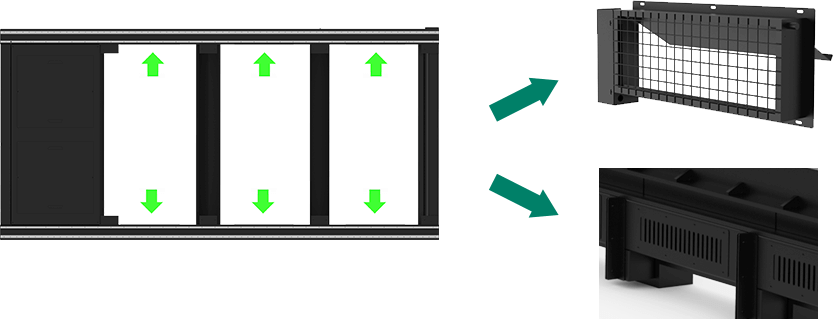

Prevent sparks from burning the dust cover and reduce loss.More Details
Provide quide rail fine-tuning function to ensure that the guide rail is always leve with the bedMore Details
Laser protective glasses prevent or reduce laser damage to the human eye.
The power of each laser can be changed according to the specific cutting requirements. In this way, one machine can meet a variety of cutting requirements and achieve the effect of multi-purpose.
The autofocusing laser head is based on the working distance of the laser head. It automatically adjusts the height of the laser head according to the distance from the cutting workpiece.
