|Maximum moving speed||50m/min|

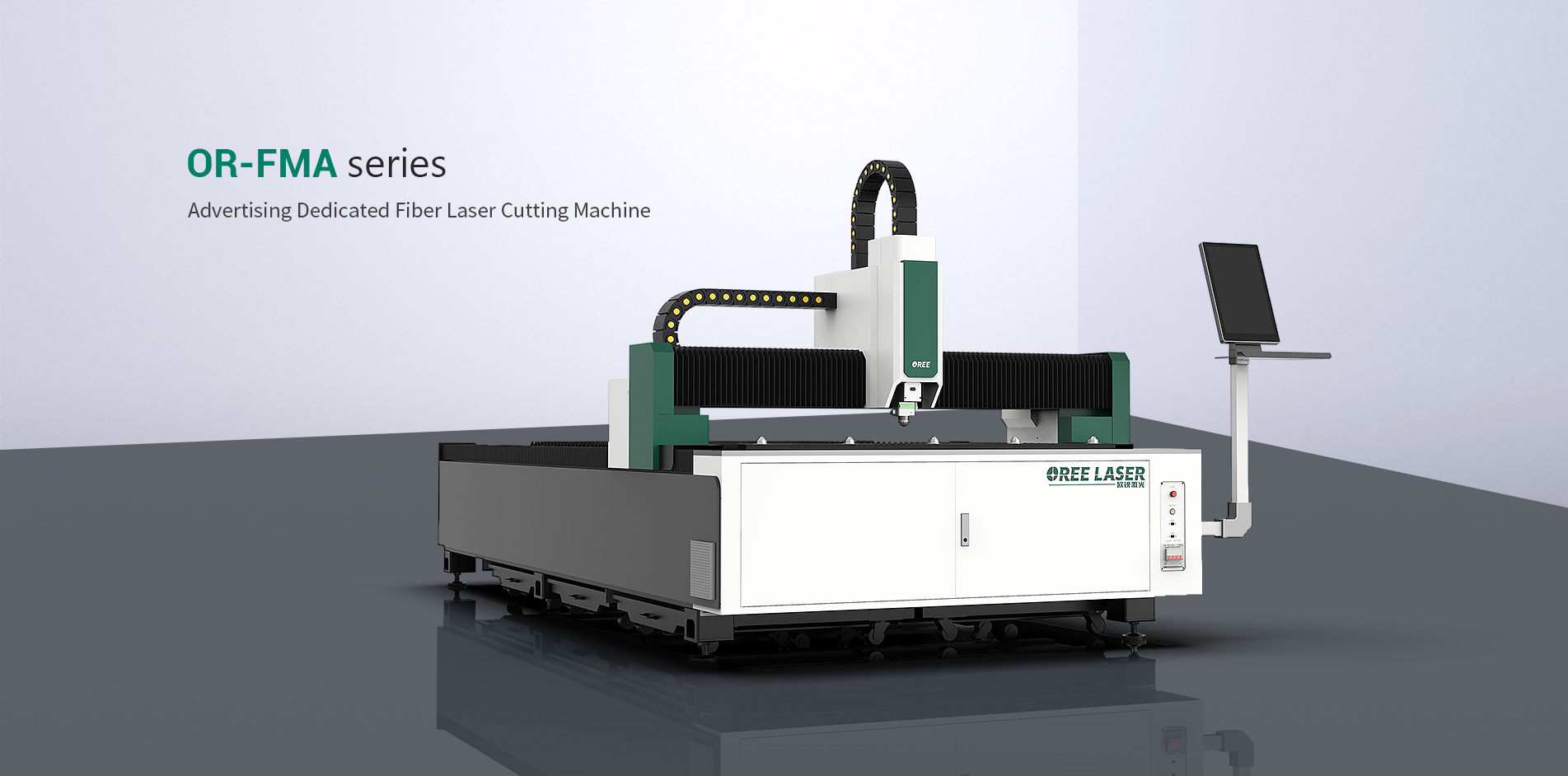

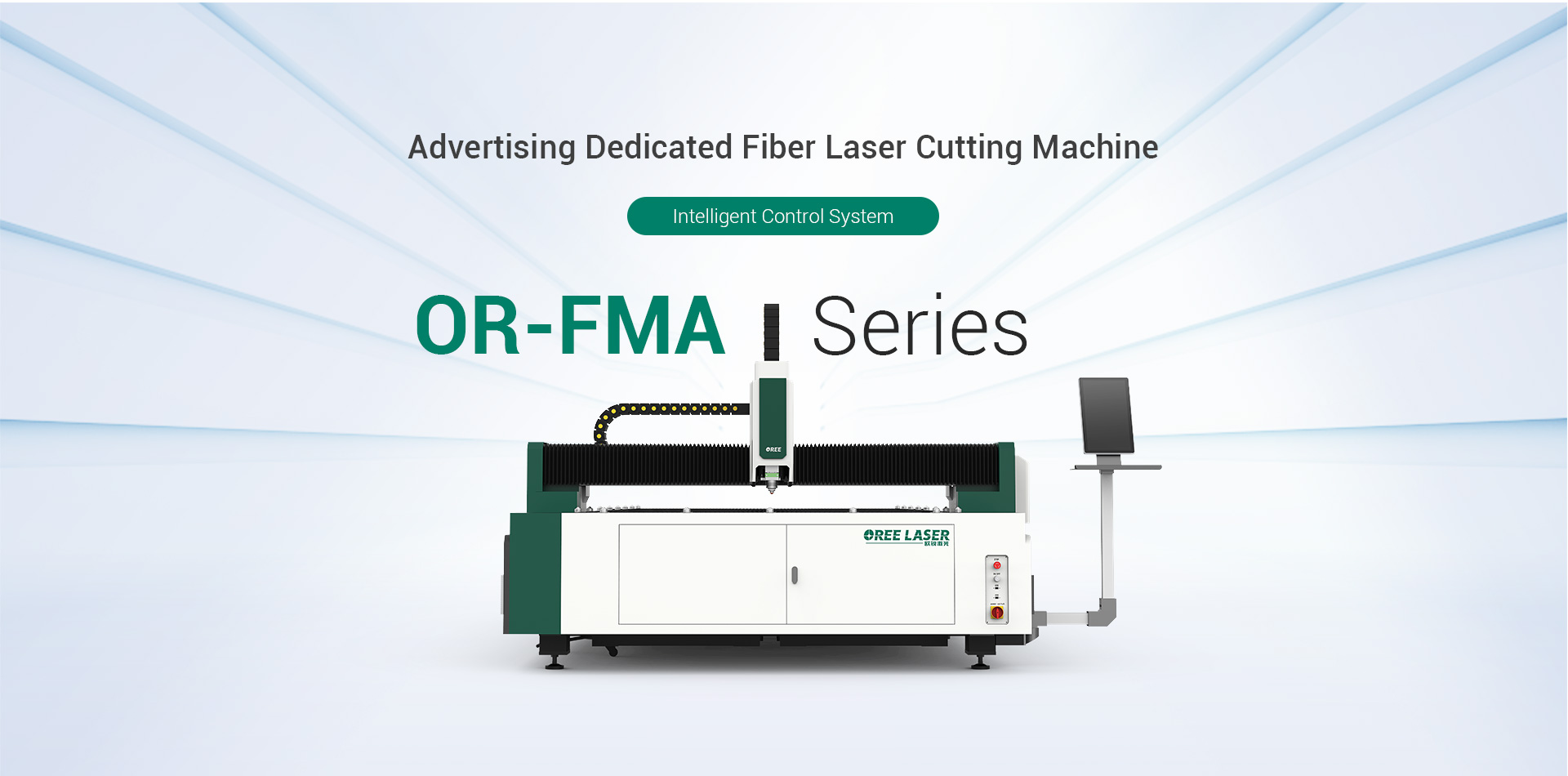

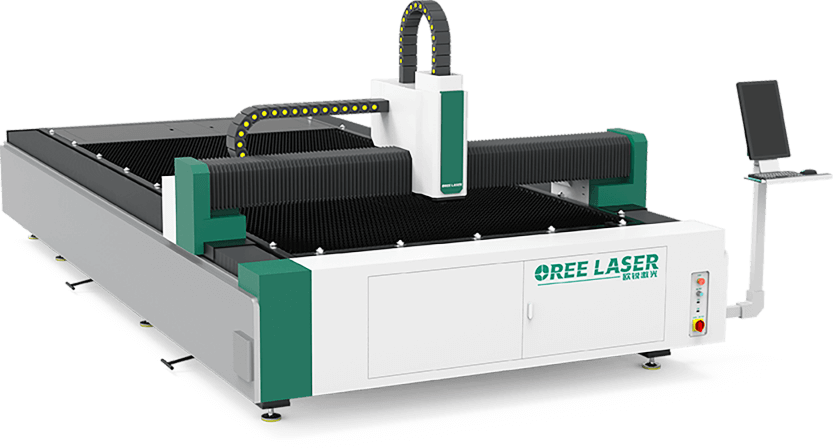

Advertising dedicated fiber laser cutting machine OR-FMA
The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
1. Use environmentally friendly refrigerant, safe and pollution-free
2. Dual temperature and dual control to protect the laser and laser head
3. Flow over-temperature alarm to ensure normal operation of equipment
4. Compressor thermal protection to protect the compressor motor from burning
5. Leakage protection to ensure a safe working environment
It adopts 8mm high-strength steel pipe laser cutting, plug-in bed structure. Three welding processes are adopted, such as through welding, and the weld is not easy to crack. After stress annealing and natural aging treatment, internal stress is eliminated, so that the bed maintains good mechanical properties, with good tensile properties, toughness and hardness.
【1】The maximum load per square meter of the operating platform is 150KGS;
【2】Effectively resist the huge inertia brought to the bed by high-frequency and high-speed commutation, and the bed is more stable;
【3】 Use plug-in welded bed, through welding and other 3 welding processes
|Maximum moving speed||50m/min||50m/min||50m/min||50m/min||50m/min||50m/min||50m/min|
|Repeated positioning accuracy||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm|
|Maximum moving speed||1968inch/min||1968inch/min||1968inch/min||1968inch/min||1968inch/min||1968inch/min||1968inch/min|
|Positioning accuracy||±0.0019685 inch||±0.0019685 inch||±0.0019685 inch||±0.0019685 inch||±0.0019685 inch||±0.0019685 inch||±0.0019685 inch|
|Repeated positioning accuracy||±0.0011811 inch||±0.0011811 inch||±0.0011811 inch||±0.0011811 inch||±0.0011811 inch||±0.0011811 inch||±0.0011811 inch|
laser cutting on the carbon steel 20
laser cutting on the carbon steel 19
laser cutting on the carbon steel 18
laser cutting on the carbon steel 17
laser cutting on the carbon steel 7
laser cutting on the carbon steel 6
laser cutting on the carbon steel 4
laser cutting on the carbon steel 3
laser cutting on the carbon steel 2
laser cutting on the stainless steel 20
laser cutting on the copper 5
laser cutting on the galvanized sheet 3
The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.More Details
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.More Details
Prevent sparks from burning the dust cover and reduce loss.More Details
Provide quide rail fine-tuning function to ensure that the guide rail is always leve with the bedMore Details
● Siemens motor, Ultra-high negative pressure fan;
● TORAY filter system;
● Visual human-machine interface (HMI);
● Industrial exterior design;
● Self-developed control system:
● Supporting EtherCAT bus, Frequency conversion energy-saving control.
Laser protective glasses prevent or reduce laser damage to the human eye.
The power of each laser can be changed according to the specific cutting requirements. In this way, one machine can meet a variety of cutting requirements and achieve the effect of multi-purpose.
The autofocusing laser head is based on the working distance of the laser head. It automatically adjusts the height of the laser head according to the distance from the cutting workpiece.
