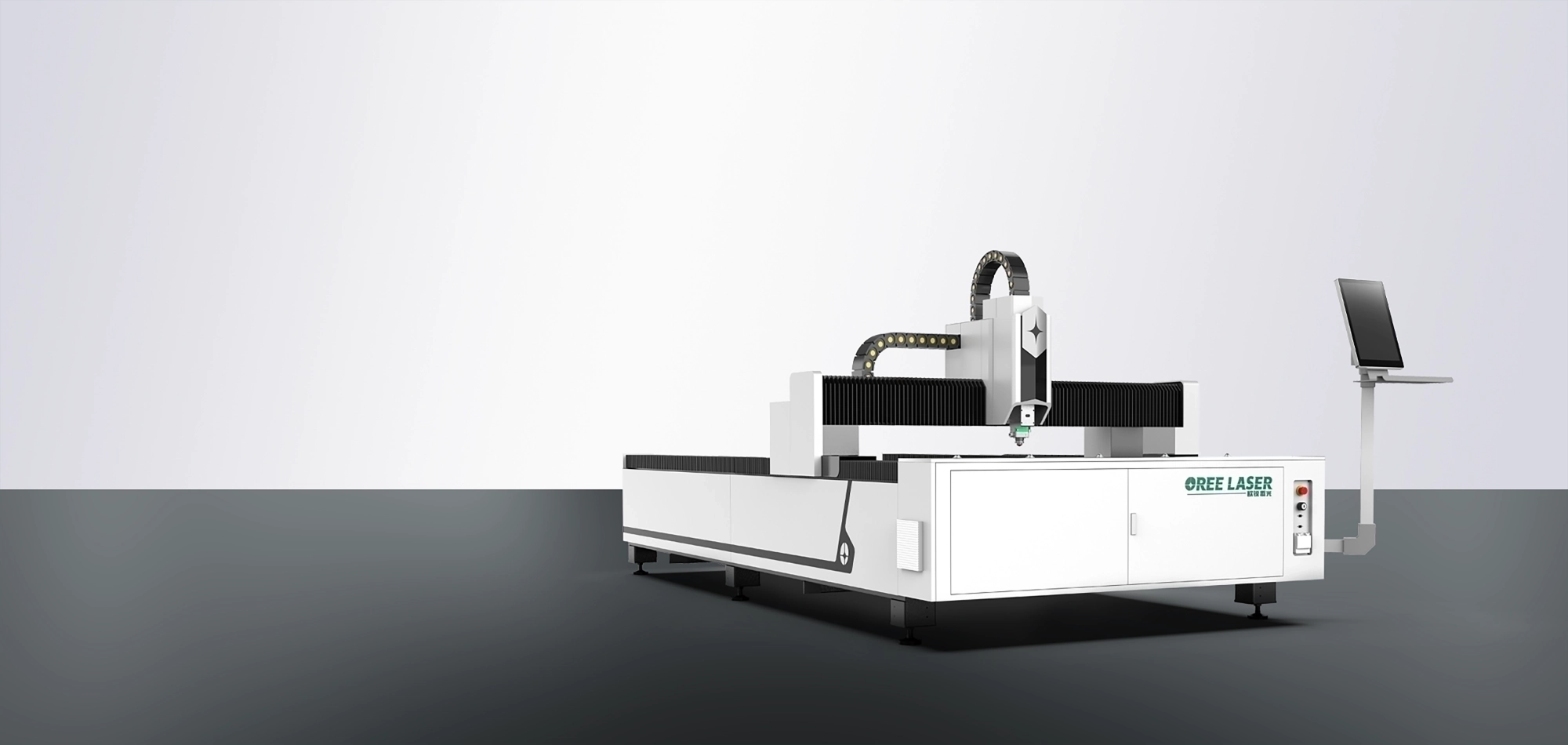

Single-platform Fiber Laser Cutting Machine

Efficient and Practical, Completely Upgraded

Single-platform open structure
Capable of multi-directional loading
High stability, fast speed

Brand New Double-beam Bed Structure

Designed for high-efficiency processing needs
Self-developed stopper plug-in double-beam design
No deformation in long-term cutting, ensuring stable
equipment operation

Modular Worktable Design

Workbench assembly modular design
Stable worktable structure, strong load-bearing capacity
Easy to disassemble, replace and maintain

Intelligent Dust Removal for Clean Production （Optional）

Large-diameter air duct design
Independent control, sectional dust removal
Improves smoke and heat removal effectiveness

Technical Parameter

inch

Model	OR-FM 3015	OR-FM 4015	OR-FM 6015	OR-FM 4020	OR-FM 6020	OR-FM 6025
Laser Power	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w
Working Area	3050*1530mm	4050*1530mm	6050*1530mm	4050*2030mm	6050*2030mm	6050*2530mm
Accuracy Of Positioning	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeat Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Max Movement Speed	115m/min	115m/min	115m/min	115m/min	115m/min	115m/min
Max Acceleration	0.8G	0.8G	0.8G	0.8G	0.8G	0.8G

Model	OR-FM 3015	OR-FM 4015	OR-FM 6015	OR-FM 4020	OR-FM 6020	OR-FM 6025
Laser Power	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w
Working Area	120*60inch	159*60inch	238*60inch	159*79inch	238*79inch	238*99inch
Accuracy Of Positioning	±0.00197inch	±0.00197inch	±0.00197inch	±0.00197inch	±0.00197inch	±0.00197inch
Repeat Repositioning Accuracy	±0.00118inch	±0.00118inch	±0.00118inch	±0.00118inch	±0.00118inch	±0.00118inch
Max Movement Speed	115m/min	115m/min	115m/min	115m/min	115m/min	115m/min
Max Acceleration	0.8G	0.8G	0.8G	0.8G	0.8G	0.8G

Cutting Sample

If you want a price, fully catalogue or other informations, pls contact us
