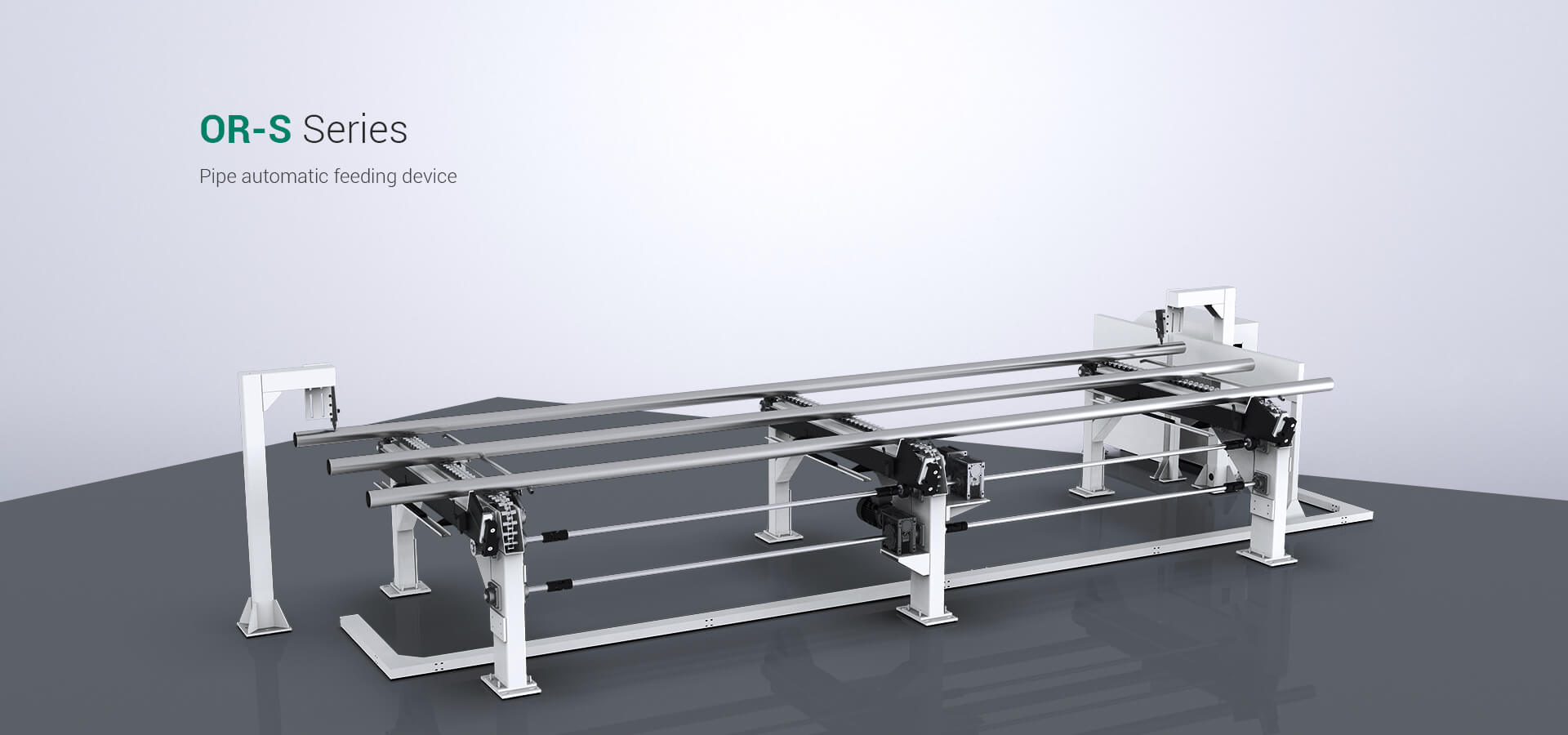

Save manpower, practical and efficient
Effectively solve the waste of time and labor costs caused by manual loading or driving, forklift loading, etc.; greatly improve production efficiency and reduce staff work.
Supports multiple tubing types
It not only supports automatic feeding of standard pipes such as round pipes, square pipes, and rectangular pipes, but also supports automatic feeding of angle steel, channel steel, H-beam, I-beam and other profiles.
Modular design
It is easy to disassemble and assemble, can be put into production quickly, and can be modularized and expanded at any time; the feeding speed is fast, and the perfect connection with the laser pipe cutting machine is realized.
Technical Parameter
mm
inch
Model
 OR-S
Compatible models
TL6016/TL6020/TG6020/TG6035/TA6020/TA6035
Feeding pipe length
5800-6400mm
Pipe section size
Round tube φ20-φ220mm Square tube 20- 150mm Diameter of circumscribed circle≤220mm
Dimensions
5500*2200*1050mm
equipment power
4KW
Maximum weight of single tube
200kg 30kg/m
Model
 OR-S
Compatible models
TL6016/TL6020/TG6020/TG6035/TA6020/TA6035
Feeding pipe length
228.34-251.96inch
Pipe section size
Round tube Φ 0.78 - Φ 8.66inch, square tube □ 0.78 - □ 5.9inch, circumscribed circle diameter ≤ 8.66inch
Dimensions
216.53*86.61*41.33inch
equipment power
4KW
Maximum weight of single tube
200kg 30kg/m
Cutting Sample
