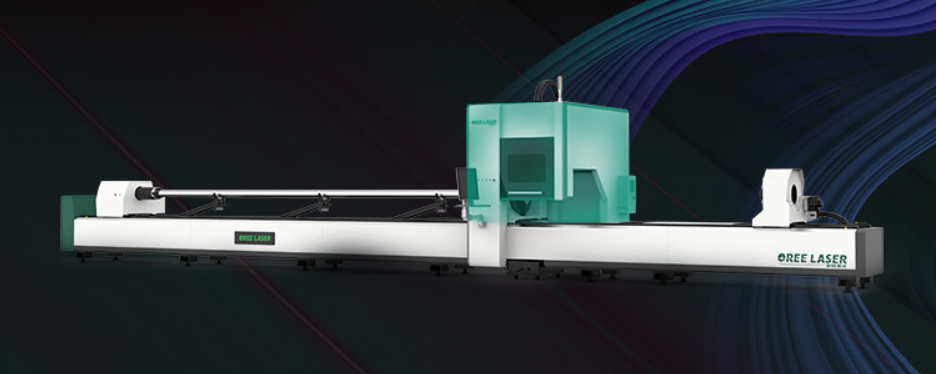

Oree’s new TS series three-chuck laser pipe cutting machine, innovating the double-chuck clamping method, adopts a three-chuck design, which can maintain the front, middle, and rear three-point clamping support of the pipe in real-time and can correct the pipe bending problem. The relative cutting efficiency of some pipes is 5%-10% higher than that of the double chuck pipe cutting machine. The pipe cutting is true ‘zero tailing’, helping customers to achieve fast, high-quality, and low-cost production and processing.




Ingenious design

  • Semi-enclosed visual protective cover

  • Rocker type industrial computer

  • Vertical lift door

  • Operation warning light

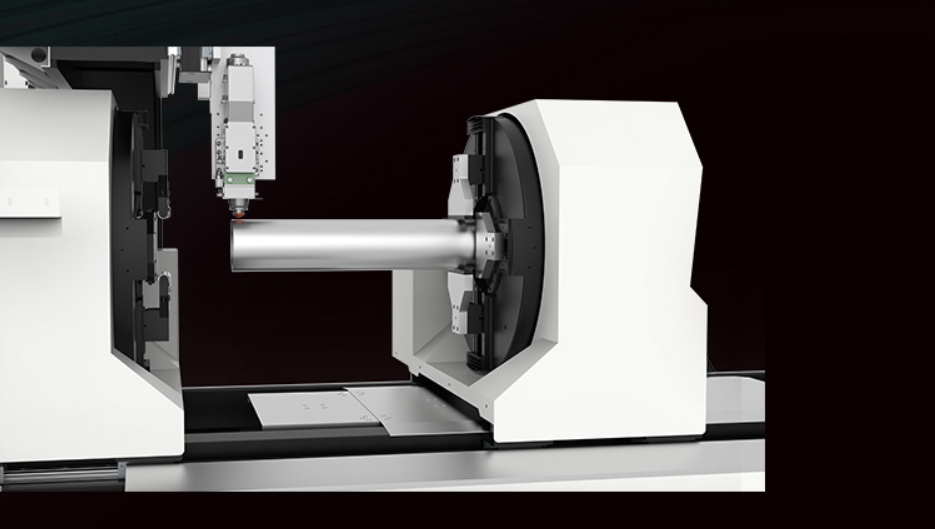

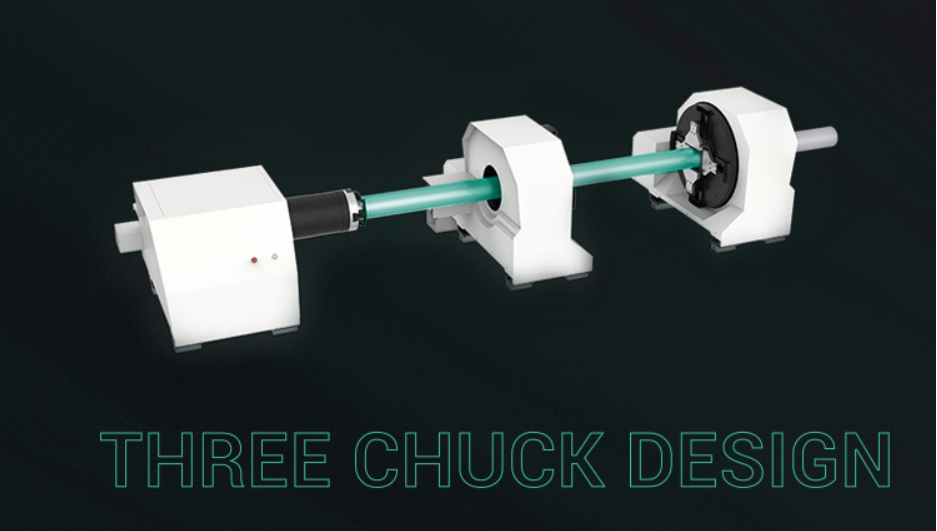

Innovative three-chuck design, stable clamping & stable cutting

  • One-key self-centering, fast clamping, rapid cutting

  • Three-point clamping to correct pipe bending, prevent inertial shaking and ensure cutting accuracy

  • The clamping force of the chuck can be adjusted according to the wall thickness of the pipe, which is convenient and efficient

  • The rear chuck brakes quickly to ensure pipe cutting accuracy





Real zero Tailing

  • The diameter of round tube: 15mm-220mm

  • The side length of square tube: 15mm-150mm

  • High pipe load, the maximum single pipe weight is 300kg

  • Clamping square tube, round tube, oval tube, flat tube, triangle tube, I-beam, and other materials without pressure

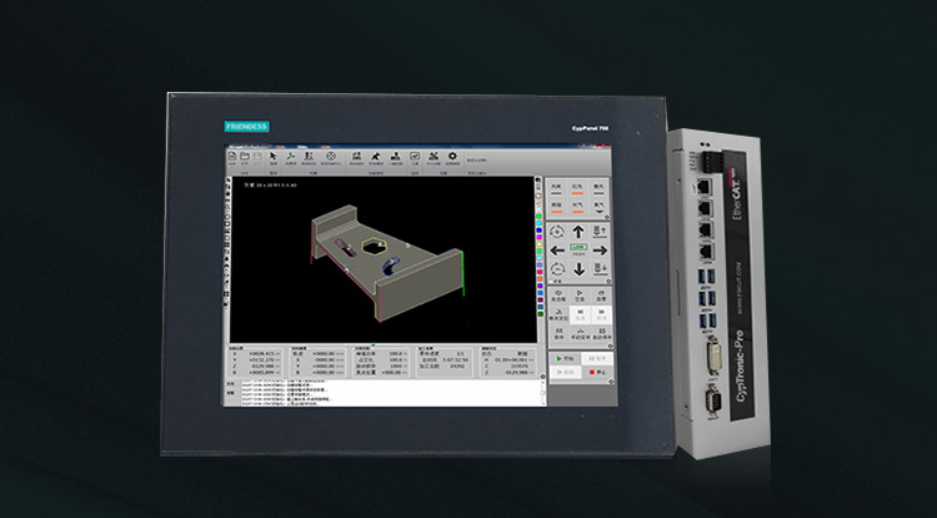

FSCUT5000 Three-Chuck Tube Cutting System, intelligent control

  • Real-time compensation of pipe center deviation, reducing pipe clamping requirements and higher efficiency;

  • The pipe has higher perforation accuracy and more accurate cutting.

  • Based on the bus real-time system and integrated control, the pipe corner-cutting is faster;

  • The corner following is more stable, and the cutting quality is more reliable.






3D tube nesting software TubesT, meet your production needs

TubesT is a 3D tube nesting software for the TS series. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.

  • Intelligent Nesting

  • Flexible Common Line

  • Quick Import

  • Drawing Modification

  • Nesting Report

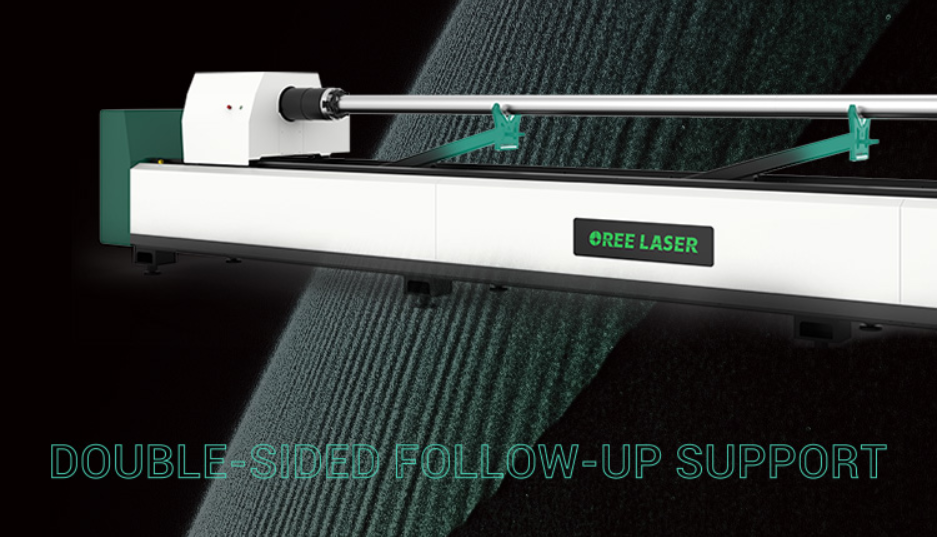

Double-sided follow-up support device

  • Double-sided support device

It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy.

  • The chuck and support device are highly synchronized

Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.

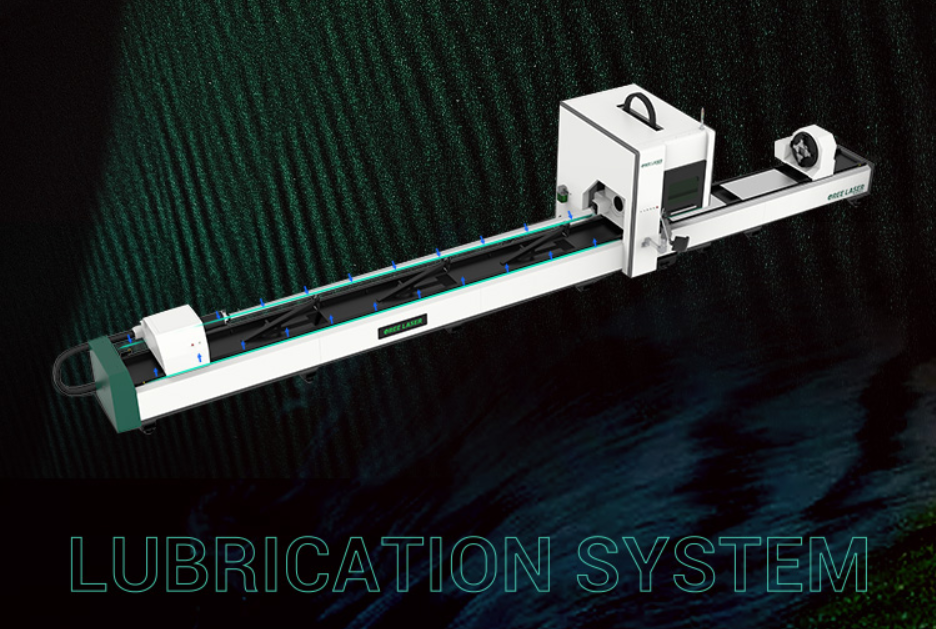

Automatic Lubrication System

  • The number and time interval of automatic lubrication can be manually set according to the length of equipment use;

  • Automatic lubrication for guide rails, sliders, gears, racks, etc., without manual lubrication;

  • The waste lubricating oil can be recycled and treated centrally.






Technical Parameters

Model

TS6020

Diameter of round tube

φ15mm-φ220mm

Side length of square tube

15*15mm-150*150mm

maximum single pipe weight

300kgs

Pipe processing length

6m

X/Y axis positioning accuracy

±0.03mm

X/Y axis repeat positioning accuracy

±0.03mm

X/Y-axis Maximum Simultaneous Positioning Speed

100m/min

Maximum acceleration

1G

Input power

380V/50-60Hz

Laser Output Power

1000W/1500W/2000W/3000W/4000W/6000W
