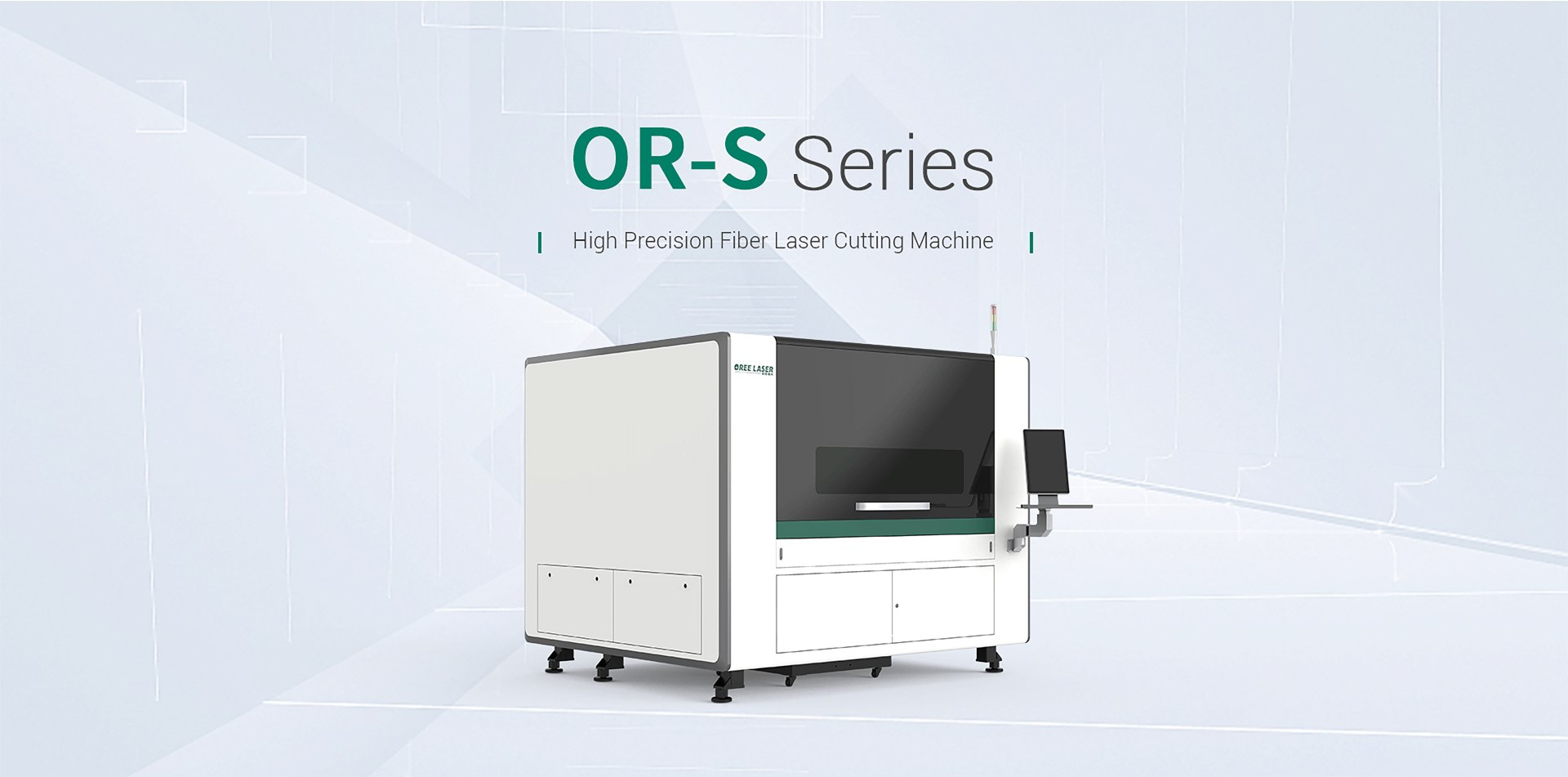

High Precision Fiber Laser Cutting Machine OR-S
Home use fiber laser cutting machine designed for small-scale work. This metal fiber laser cutting machine is the best choice for home use. The whole fiber laser cutters with the safety protection cover, PMI screw drive, precision cutting. It has a small footprint and can meet the metal cutting of the home.
Model | OR-S 1309 ?> |
Working Area | 1330*950 mm |
Laser Power | 1000w/1500w/2000w |
Max Speed | 60 m/min |
High Precision Fiber Laser Cutting Machine OR-S
software controls the oil pump to automatically perform multi-point lubrication, and manually can control the number and time interval of lubrication, saving labor time.
lubrication system automatically lubricates the guide rail, sliding block, screw, rack and other points to reduce the rate of equipment strain.

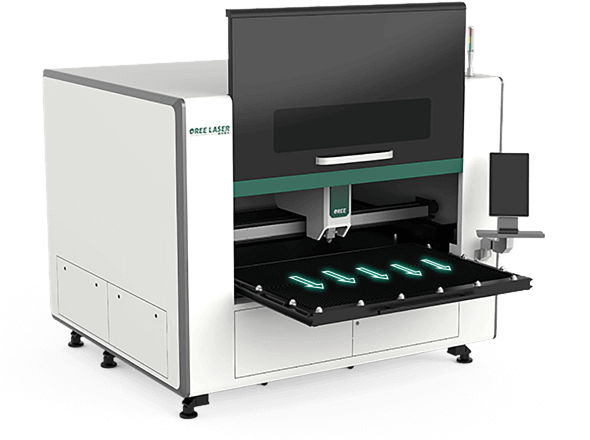

It is convenient for the operator to carry out subsequent operations such as loading and unloading, slag cleaning, etc., which is convenient and worry-free

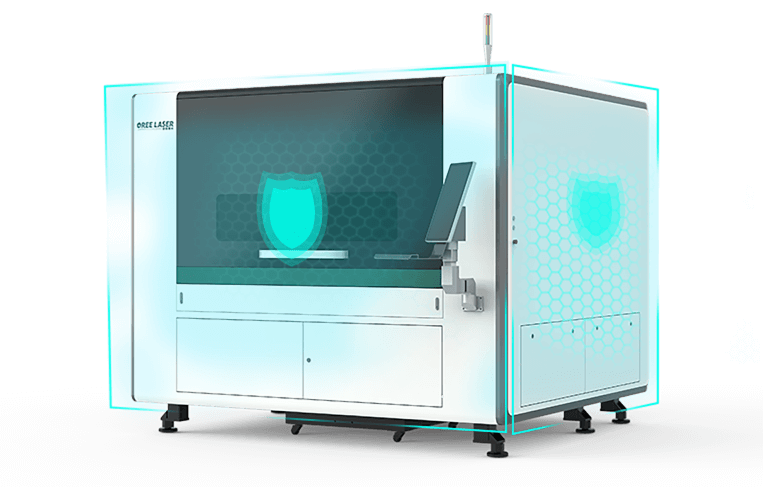

The European CE standard OD4+ level protective glass observation window has a high laser protection level to prevent laser damage to personnel and ensure personal safety.
Using 8mm high-strength steel pipe laser blanking, plug-in bed structure, adopting three welding processes such as straight-through welding, the weld is not easy to tear, make the bed maintains good mechanical properties, good tensile performance, toughness, and hardness of the product.
OR-S 1309 | |
---|---|
Working Area | 1330*950 mm |
Accuracy of Positioning | ±0.02mm |
X/Y-axis repositioning accuracy | ±0.02mm |
Max Movement Speed | 60m/min |
Max Acceleration | 1G |
Laser Power | 1000w/1500w/2000w |

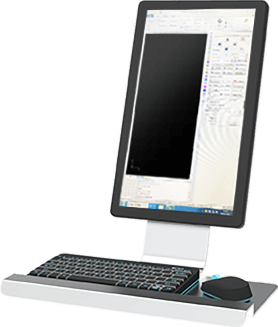

Wireless control, convenient and more efficient, one computer can control several machines at a time.

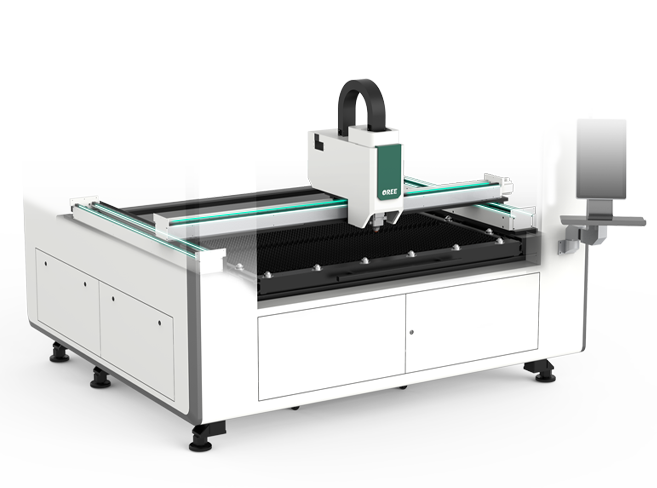

More DetailsX-axis Is Equipped With 2 Guide Rails The X axis is equipped with 2 guide rails, which can run faster and cut more accurately, ensuring that there is no wavy line in straight cutting. Y-axis Dual-drive Dual-screw Configuration Using Y-axis dual-drive dual-screw configuration, 4 guide rails ru ore stable.
More DetailsCypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry.
More DetailsProvide quide rail fine-tuning function to ensure that the guide rail is always leve with the bed
More Details● Siemens motor, Ultra-high negative pressure fan;
● TORAY filter system;
● Visual human-machine interface (HMI);
● Industrial exterior design;
● Self-developed control system:
● Supporting EtherCAT bus, Frequency conversion energy-saving control.
Laser protective glasses prevent or reduce laser damage to the human eye.
The power of each laser can be changed according to the specific cutting requirements. In this way, one machine can meet a variety of cutting requirements and achieve the effect of multi-purpose.
The autofocusing laser head is based on the working distance of the laser head. It automatically adjusts the height of the laser head according to the distance from the cutting workpiece.
