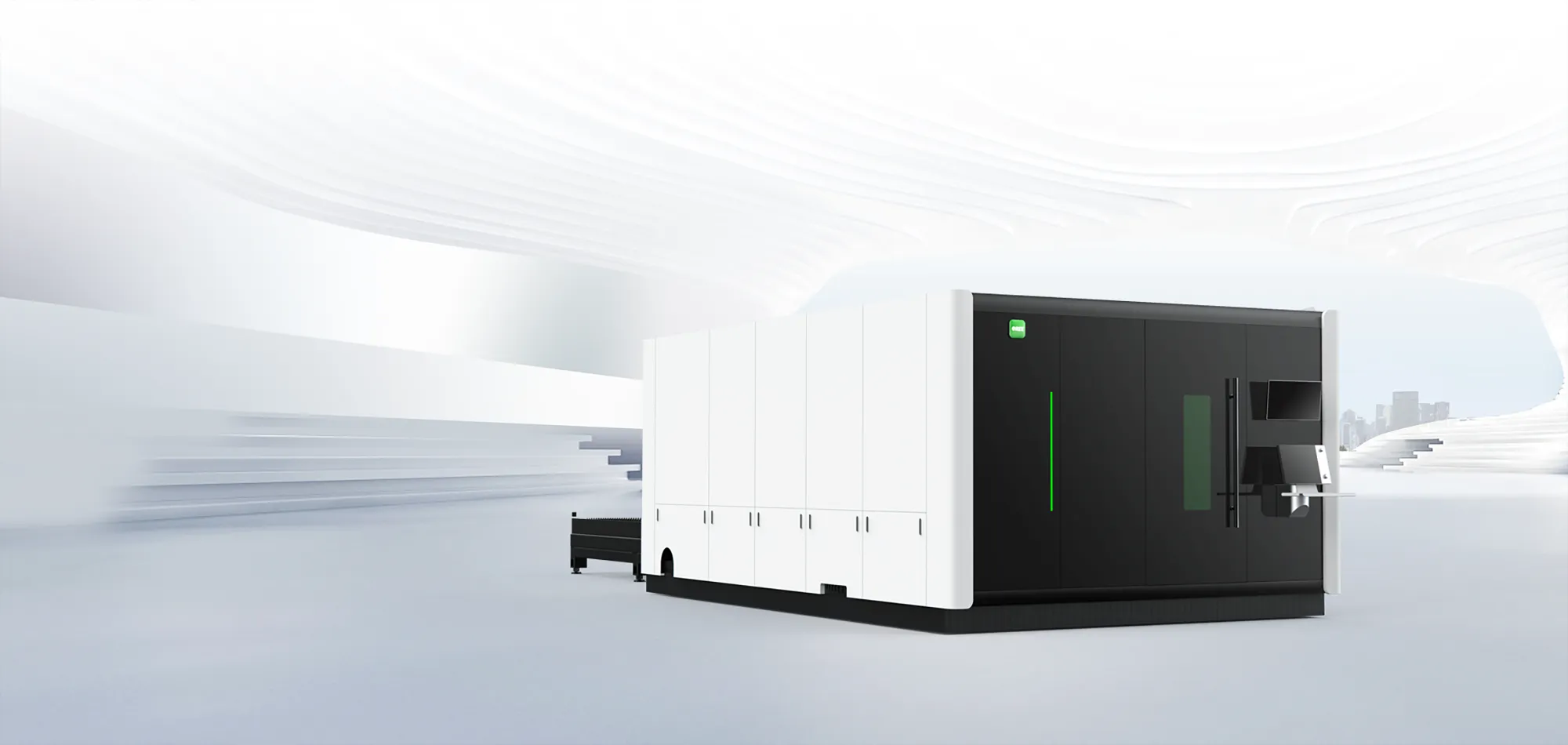

High Power Fiber Laser Cutting machine OR-H
The high-power fiber laser cutting machine is an ideal high-power laser machine for metal plates,
with low purchasing costs and training costs, high-efficiency and high-speed cutting.
It is the best choice for users to make a huge benefits.
This high power laser cutter mainly apply for stainless steel, carbon steel, alloy steel, spring steel, copper plate,
aluminum plate, gold, silver, titanium and other plate materials.
Widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories,
kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
Model | OR-H 6025 ?> |
Working Area | 6050*2530mm |
Laser Power | 6000w~30000w |
Max Movement Speed | 196m/min |
High Power Fiber Laser Cutting machine
In order to improve the beam structure and optimize its dynamic performance, while ensuring the stability of the beam structure, the fourth-generation aviation aluminum alloy beam was developed using finite element analysis. The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Lightweight design, fast acceleration, the monitoring data can be read on the mobile terminal or CNC system, autofocus is simple, fast and more precise, distance sensor 0 drift measurement is more accurate, CoolTec cooling technology quickly cools the sheet metal surface temperature, the airtight light path protects against dust falling and protects the lens for continuous monitoring.
Six-sided steel rapid exchange platformThe pulley and the track are inlaid and clamped, and the track brush is used to clean the quide.The twc fit closely, and the platform exchange s more stable.
The large 32-inch screen and the integrated design of monitoring and operation provide users with the ultimate experience;
The protective cover has a built-in camera to monitor the machine without stopping the machine during operation, which is convenient for the operator to observe the cutting process in real time;
The rear camera of the outer cover is oonvenient for the operator to monitor the side and rear dynamics in real time;
OR-H 6025 | |
---|---|
Working Area | 6050*2530 mm |
Accuracy of Positioning | ±0.03mm |
Repeat Repositioning Accuracy | ±0.02mm |
Max Movement Speed | 196 m/min |
Laser Power | 6000w~30000w |
Max Acceleration | 2.5G |
The power distribution cabinet is an electrical control cabinet that supplies power to the equipment. Usually, it will appear in the distribution cabinet system, and the power is transmitted to the power unit or power equipment. The electric control cabinet is also equipped with an electric control center. The main function is to start and stop the motor control. In addition, it can also control the position and running speed of the motor. When the motor fails, it is very convenient and quick to detect and diagnose the fault. A cabinet that divides electrical energy into different functions and realized by different circuits is called a power distribution cabinet.
● Siemens motor, Ultra-high negative pressure fan;
● TORAY filter system;
● Visual human-machine interface (HMI);
● Industrial exterior design;
● Self-developed control system:
● Supporting EtherCAT bus, Frequency conversion energy-saving control.
The power of each laser can be changed according to the specific cutting requirements. In this way, one machine can meet a variety of cutting requirements and achieve the effect of multi-purpose.
The autofocusing laser head is based on the working distance of the laser head. It automatically adjusts the height of the laser head according to the distance from the cutting workpiece.
