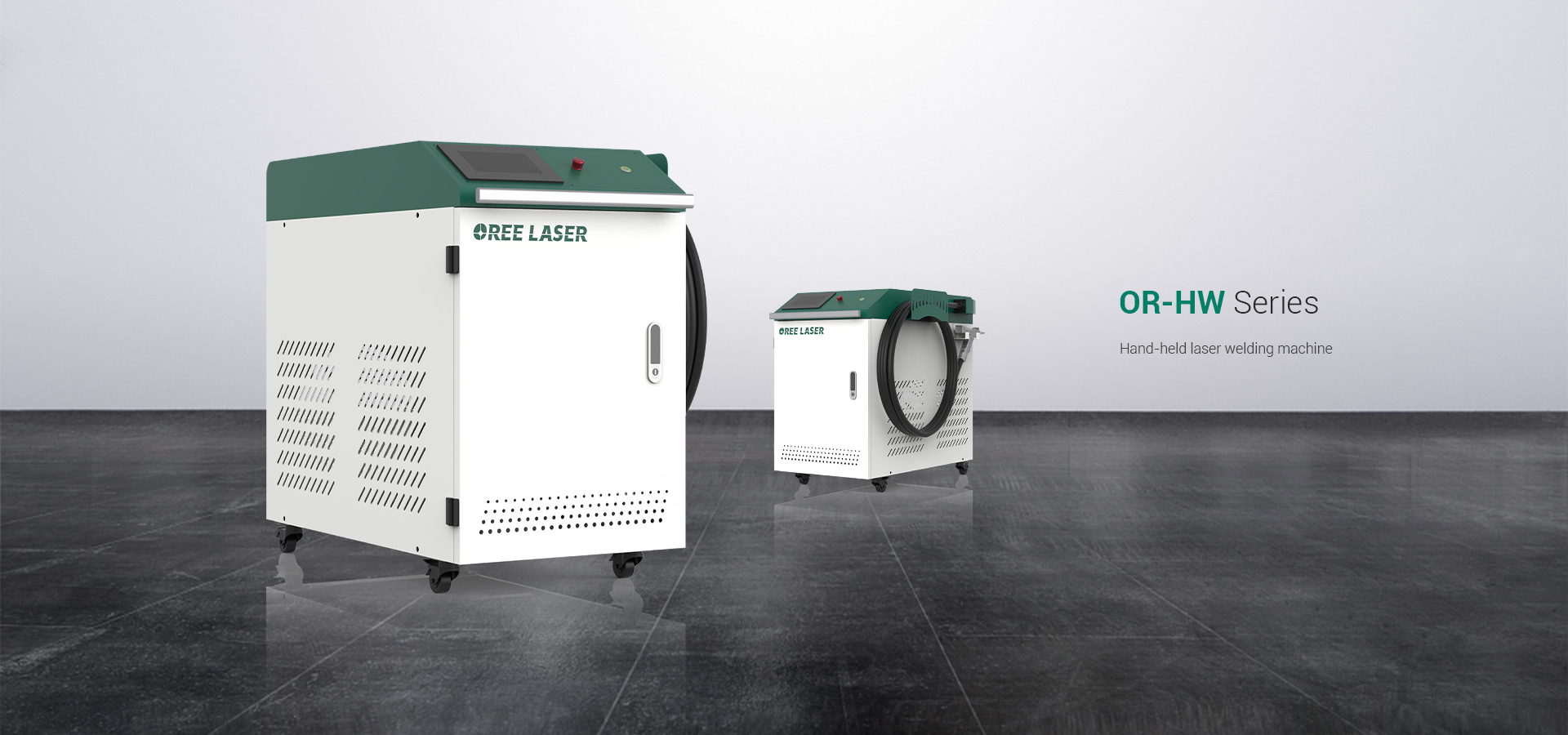

Hand-held laser welding machine OR-HW

Small Body, Efficient Welding

The welding speed of OR-HW laser welding machine is 3-10 times that of traditional argon arc welding and plasma welding. The welding heat affected area is small, and it will not cause problems such as deformation, blackening, traces on the back of the joint construction, and the welding depth is large, the melting is sufficient, and the welding is firm.

Dual-drive Handheld Swing Laser Welding Head

There are 6 welding modes and multiple welding nozzles to meet different welding needs; it has a safety sensor function, which emits a laser after touching the metal and automatically locks the light when it is removed; the spiral jitter function, the width of the weld can be adjusted, and the welding ability is significantly improved.

Simple Operation Panel

Display operation interface, simple and eye-catching button, no programming and teaching, simple operation

Water Cooler

Dual temperature and dual control, circulating water circuit, can quickly cool the internal pipeline cavity of the welding head, while cooling the laser.

Standard 10 Meters Optical Fiber

It is conventionally equipped with 10-meter optical fiber, which can realize long-distance, flexible welding in large areas and reduce operating limitations.

360° No Dead Angle Micro Welding

After the laser beam is focused, a small spot can be obtained, which can be accurately positioned, and is applied to micro and small workpieces that are automatically produced in large quantities. Mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, stitch welding, tailor welding, sealing welding, etc. High aspect ratio, small weld width, small heat aff

Technical Parameter

inch

Model	OR-HW1000	OR-HW1500	OR-HW2000
Laser Power	1000W	1500W	2000W
Operating Mode	Continuous / Modulation	Continuous / Modulation	Continuous / Modulation
Laser Wavelength	1070NM	1070NM	1070NM
Output Power Stability	±2％	±2％	±2％
Power Requirements	220V/380V	220V/380V	220V/380V
Machine Power	≤7KW	≤9KW	≤10KW
Operating Environment temperature range	15-35℃	15-35℃	15-35℃
Working Environment humidity range	＜70％ No condensation	＜70％ No condensation	＜70％ No condensation
Max Welding Thickness	0.5-1.5mm	0.5-2mm	0.5-3mm
Welding Line Requirements	≤0.5mm	≤0.5mm	≤0.5mm
Max Welding Speed	120mm/s	120mm/s	120mm/s
Machine Size	1190×1100×650mm	1190×1100×650mm	1190×1100×650mm

Model	OR-HW1000	OR-HW1500	OR-HW2000
Laser Power	1000W	1500W	2000W
Operating Mode	Continuous / Modulation	Continuous / Modulation	Continuous / Modulation
Laser Wavelength	0.0000421in	0.0000421in	0.0000421in
Output Power Stability	±2％	±2％	±2％
Power Requirements	220V/380V	220V/380V	220V/380V
Machine Power	≤7KW	≤9KW	≤10KW
Operating Environment temperature range	15-35℃	15-35℃	15-35℃
Working Environment humidity range	＜70％ No condensation	＜70％ No condensation	＜70％ No condensation
Max Welding Thickness	0.0016404-0.0049213inch	0.0016404-0.0065617inch	0.0016404-0.0098425inch
Welding Line Requirements	≤0.019685in	≤0.019685in	≤0.019685in
Max Welding Speed	4.7244095in/s	4.7244095in/s	4.7244095in/s
Machine Size	47×43×26in	47×43×26in	47×43×26in
