Triangular Overweight Welded Bed

This bed adopts computer finite element analysis to assist the optimization design, the triangular steel plate layout, the design is more reasonable, and the rigidity and strength of the bed are greatly improved. The plate welding bed is subjected to stress relief annealing treatment on the basis of heavier, so that the bed is not easy to deform and is more stable.

The Fifth-generation Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Lightning Exchange

High and low exchange platform, realize fast and complete exchange, save loading and unloading time

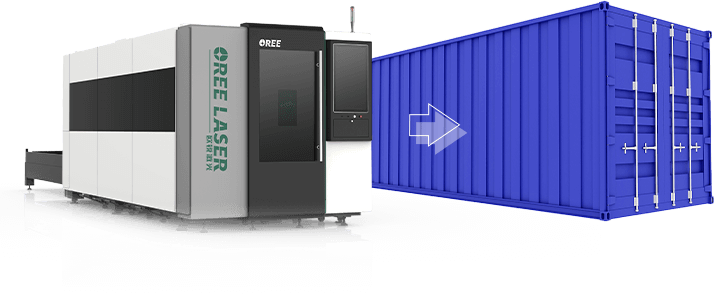

Packed in a 20GP container for easy transportation.

This small machine can be installed in a 20GP container to protect the fuselage from damage during transportation, reduce transportation costs, and facilitate loading and unloading.
32-inch ultra-high-definition large screen
Intelligent control system, real-time monitoring, rich functions, safe production, large-size high-definition screen, ergonomic design
Product Video
Technical Parameter
mm
inch
Model
 OR-PH3015 OR-PH6015 OR-PH4020 OR-PH6020 OR-PH6025
Processing area
3050*1530mm 6050*1530mm 4050*2030mm 6050*2030mm 6050*2530mm
Laser power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Positioning accuracy
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repeated positioning accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Maximum cutting speed
100m/min 100m/min 120m/min 120m/min 120m/min
Maximum acceleration
1.5G 1.5G 1.5G 1.5G 1.5G
Model
 OR-PH3015 OR-PH6015 OR-PH4020 OR-PH6020 OR-PH6025
Processing area
120*60inch 238*60inch 159*79inch 238*79inch 238*99inch
Laser power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Positioning accuracy
±0.001181inch ±0.001181inch ±0.001181inch ±0.001181inch ±0.001181inch
Repeated positioning accuracy
±0.0007874inch ±0.0007874inch ±0.0007874inch ±0.0007874inch ±0.0007874inch
Maximum cutting speed
100m/min 100m/min 120m/min 120m/min 120m/min
Maximum acceleration
1.5G 1.5G 1.5G 1.5G 1.5G
Cutting Sample
