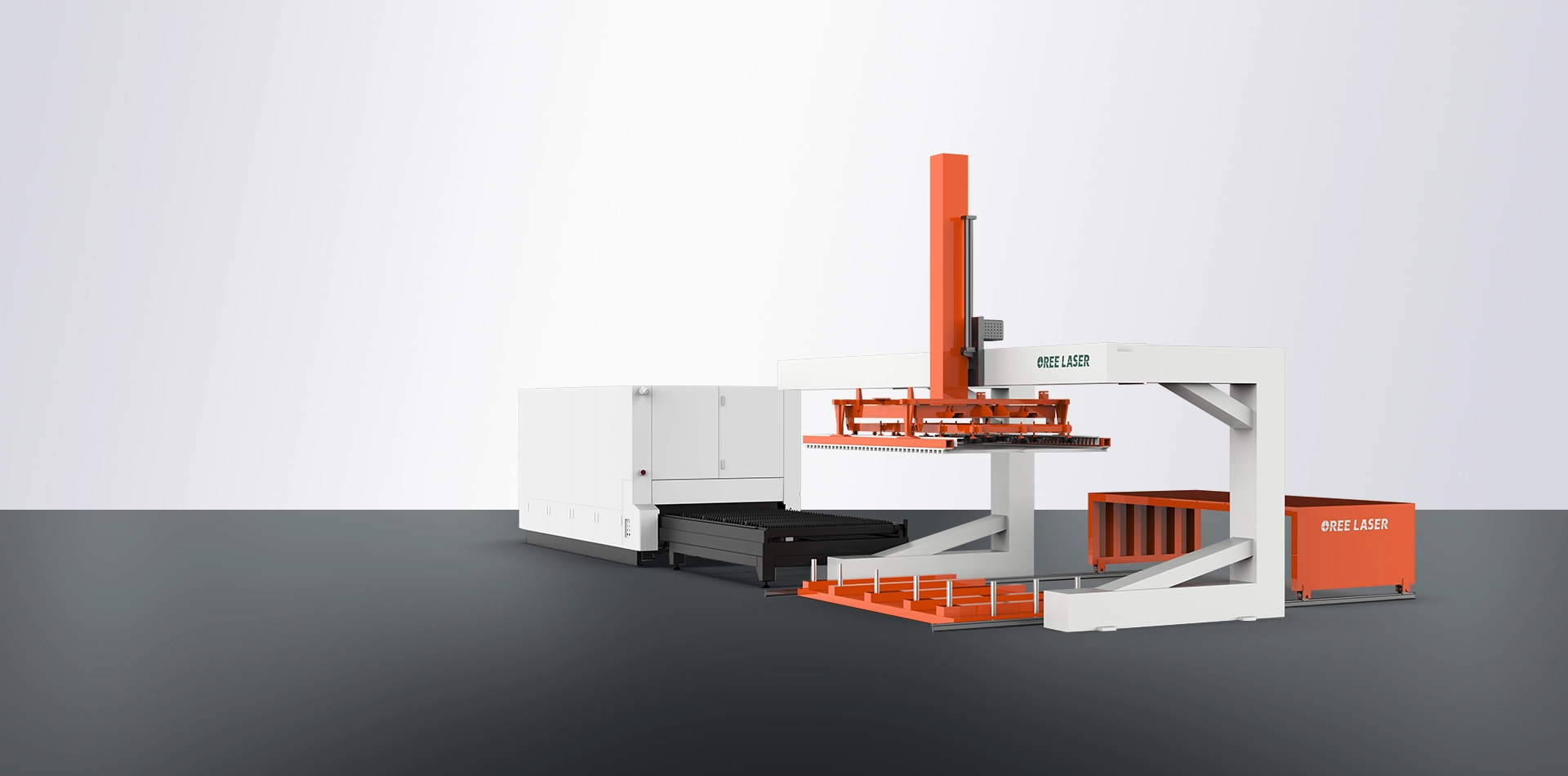

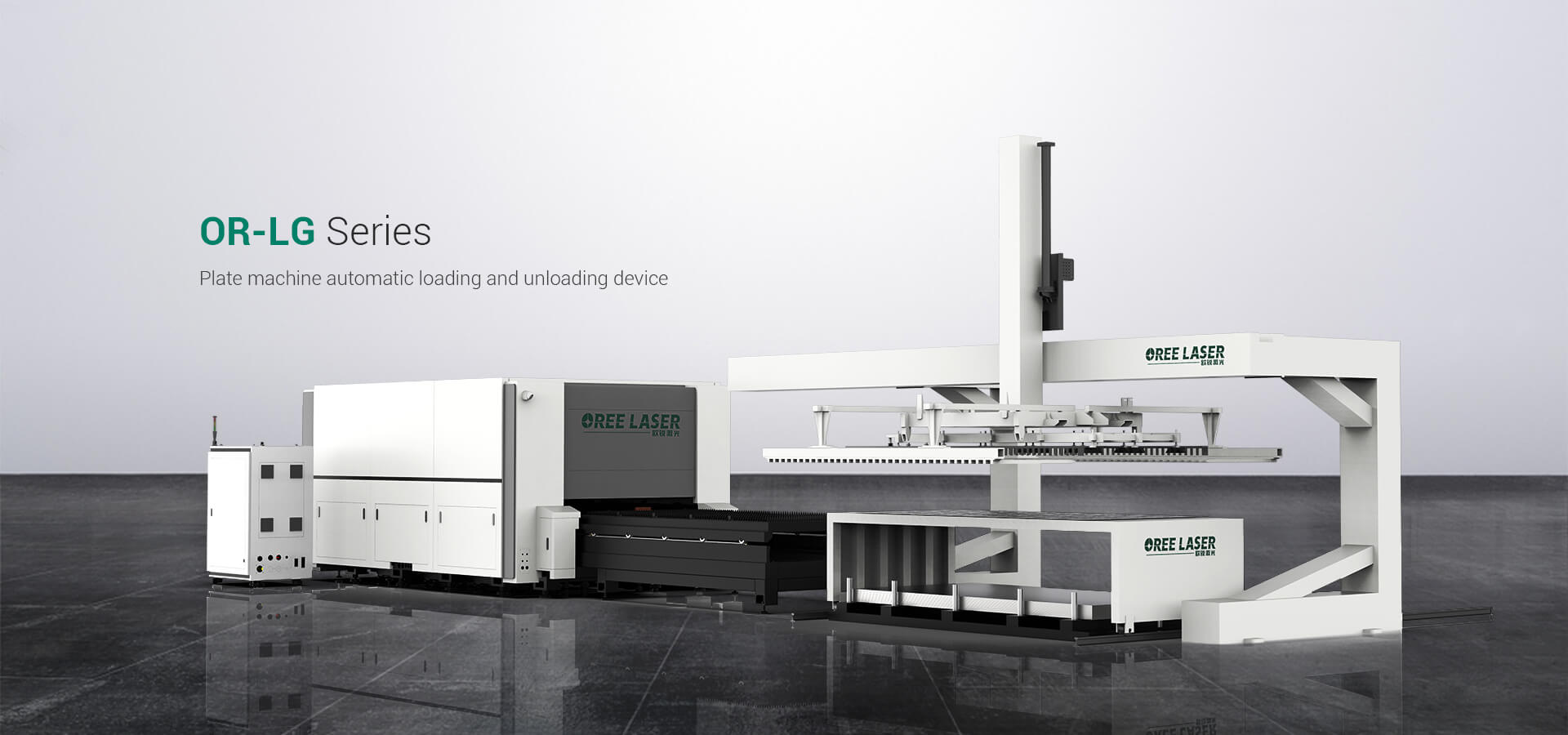

Automatic loading and unloading, cutting efficient cycle

Be able to meet automatic cutting cycle, loading and unloading, make the whole process more fast, high efficiency, stable, and saves time and effort.

Thickness measurement of sheet by layers, safe loading and unloading

Automatic thickness measurement of sheet, Plate separation function and double plate detection function, avoids loading multiple sheets.

Modularization design, disassembling transportation more convenient

The separate modular design greatly reduces the installation time, simplifies the installation process and saves the transportation cost.
Technical Parameter
mm
inch
Model
OR-PH3015 OR-PH6015 OR-PH4020 OR-PH6020 OR-PH6025
Power
1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w 1000w~6000w
Positioning Accuracy
±0.03mm ±0.03mm ±0.03mm ±0.03mm ±0.03mm
Repeat Repositioning Accuracy
±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm
Cutting Speed
100m/min 120m/min 100m/min 120m/min 100m/min
Maximum Acceleration
1.5G 1.5G 1.5G 1.5G 1.5G
Equipment Size
3050mm*1530mm 6050mm*1530mm 4050mm*2030mm 6050mm*2030mm 6050mm*2530mm
Model
OR-PH3015 OR-PH6015 OR-PH4020 OR-PH6020 OR-PH6025
Power
OR-PH6025 OR-PH6025 OR-PH6025 OR-PH6025 OR-PH6025
Positioning Accuracy
±0.0011811inch ±0.0011811inch ±0.0011811inch ±0.0011811inch ±0.0011811inch
Repeat Repositioning Accuracy
0.0007874 inch 0.0007874 inch 0.0007874 inch 0.0007874 inch 0.0007874 inch
Cutting Speed
100m/min 120m/min 100m/min 120m/min 100m/min
Maximum Acceleration
1.5G 1.5G 1.5G 1.5G 1.5G
Equipment Size
120inch*60inch 238inch*60inch 159inch*79inch 238inch*79inch 238inch*99inch
Cutting Sample
Contact Us
If you want a price, fully catalogue or other informations, pls contact us
