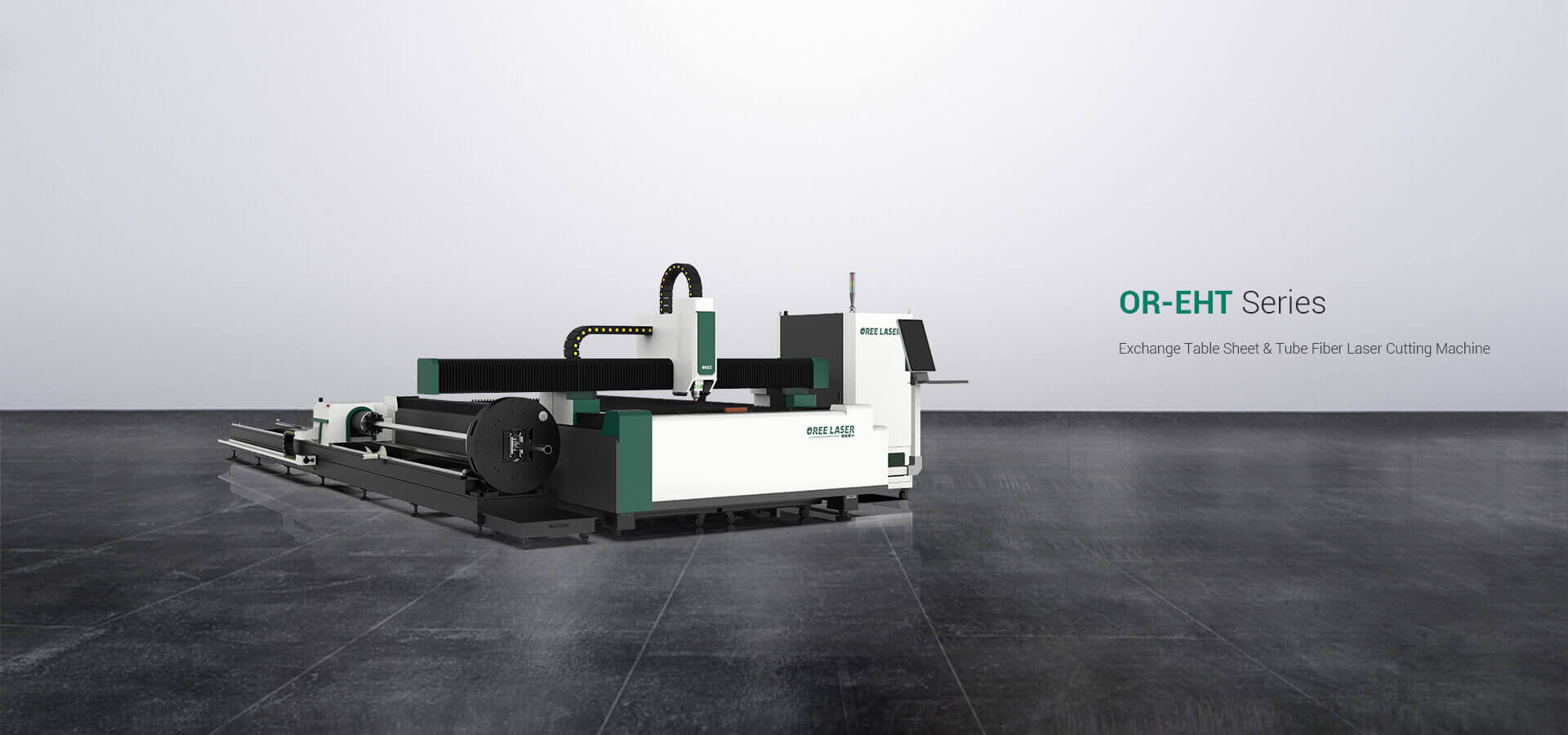

Exchange Table Sheet & Tube Fiber Laser Cutting Machine OR-EHT

PRODUCT DESCRIPTION

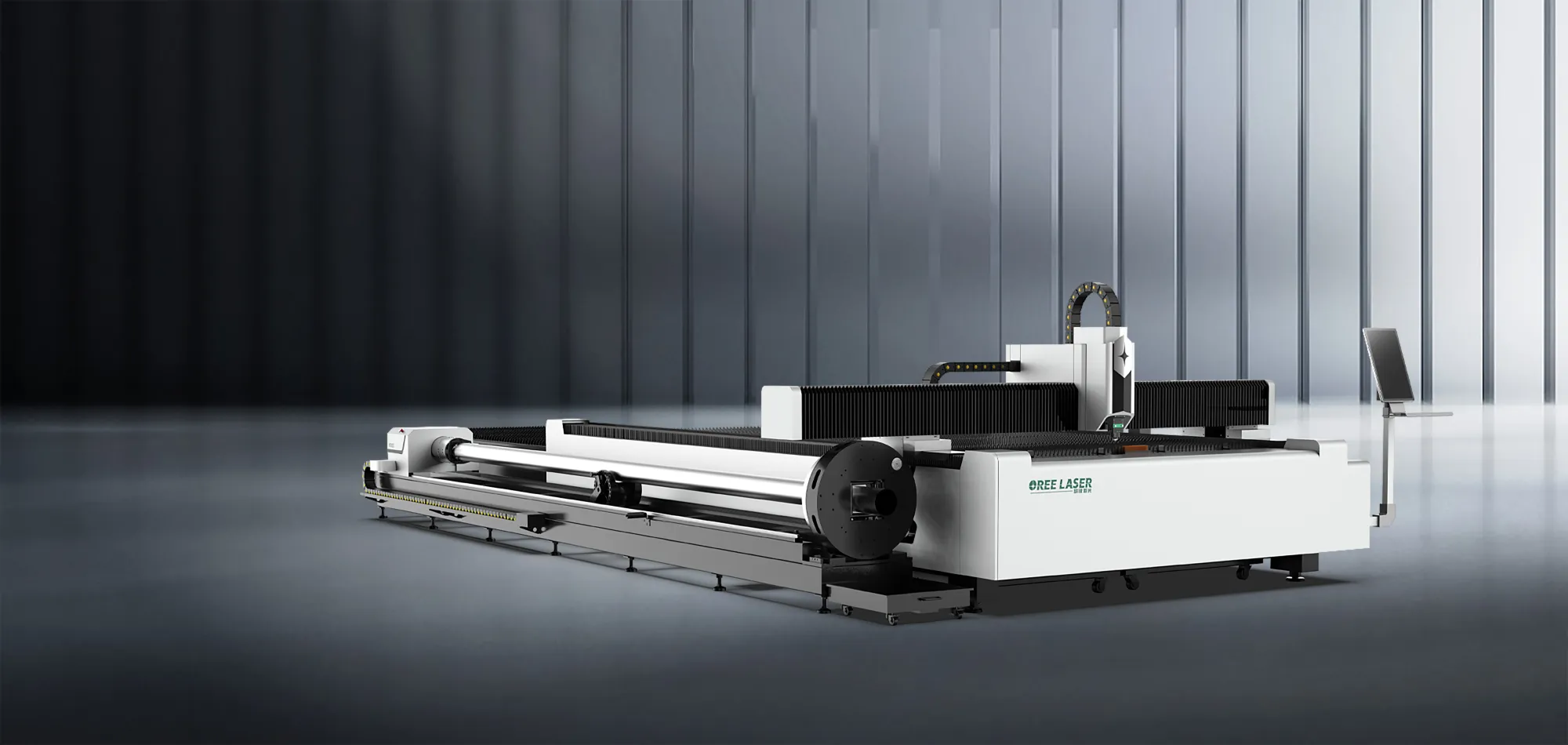

Exchange table sheet & tube fiber laser cutting machine not only realizes the cutting of two different materials shapes

on the same machine tool but also saves more than 50% of space and cost with the exchange platform.

This fiber laser cutting machine adopts a cast iron bed, a rack and pinion drive system, and professional cutting CNC system,

so that it is easy to use and simple to operate and maintain.

At the same time, the strict assembly process ensures the stable operation of the machine with high precision.

It is a good choice for users who want to have economical plate or pipe processing.

The sheet and tube fiber cutting machine realizes the cutting of two different materials shapes on the same machine tool.

mm inch

Model	OR-EH 3015T
Working Area	3000*1500mm
Laser Power	1000w~6000w
Max Speed	120m/min

Request an offer

Looking for other machine sizes? Product overview

SEE HOW IT WORKS

Push the “PLAY” button and see the video

Product Advantage

Exchange table sheet & tube fiber laser cutting machine

The fifth-generation aviation aluminum alloy beam

In order to improve the beam structure and optimize its dynamic performance, while ensuring the stability of the beam structure, the fourth-generation aviation aluminum alloy beam was developed using finite element analysis. The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Automatic lubrication system

The time and frequency of lubrication can be adjusted through the central control system, and comprehensive multi-point lubrication for guide rails, sliders, screws, racks, etc., and automatic return and collection of waste lubricating fluid.

Laser head

The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.

Intelligent control system

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Exchange platform

Equipped with a six-sided steel track, the pulley and the track are inlaid closely, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange of 10S.

Double platform high rigidity super heavy steel plate welded bed

The raw material of the welded bed is 12mm thick steel plate. The finite element analysis assists in optimizing the structure of the bed, and the groove welding method is used to achieve equal strength butt joints to ensure the good mechanical properties of the bed. After stress annealing and natural aging treatment to eliminate internal stress, maintain the extremely high stability and cutting accuracy of the bed.

【1】The maximum load per square meter of the operating platform is 200KGS;

【2】Effectively resist the huge inertia brought to the bed by high-frequency and high-speed commutation, and the bed is more stable;

【3】The shape variables of the rail mounting surface is small, generally around 0.02mm/M (read as: 0.02mm per meter)

Technical Data

mm inch

	OR-EH 3015T	OR-EH 4020T	OR-EH 6020T
Working Area	3000*1500mm	4000*2000mm	6000*2000mm
Repeat Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm
Accuracy of Positioning	±0.02mm	±0.02mm	±0.02mm
Maximum Speed	120m/min	120m/min	120m/min
Laser Power	1000w~6000w	1000w~6000w	1000w~6000w
Working Table	Blade table	Blade table	Blade table
Maximum Acceleration	1.2G	1.2G	1.2G

Datasheet

	OR-EH 3015T	OR-EH 4020T	OR-FH 6020
Working Area	118*59in	157*79in	236*79in
Repeat Repositioning Accuracy	±0.0011811 inch	±0.0011811 inch	±0.0011811 inch
Accuracy of Positioning	±0.0007874 inch	±0.0007874 inch	±0.0007874 inch
Maximum Speed	4724inch/min	4724inch/min	4724inch/min
Laser Power	1000w~6000w	1000w~6000w	1000w~6000w
Working Table	Blade table	Blade table	Blade table
Maximum Acceleration	1.2G	1.2G	1.2G
