PRODUCT DESCRIPTION

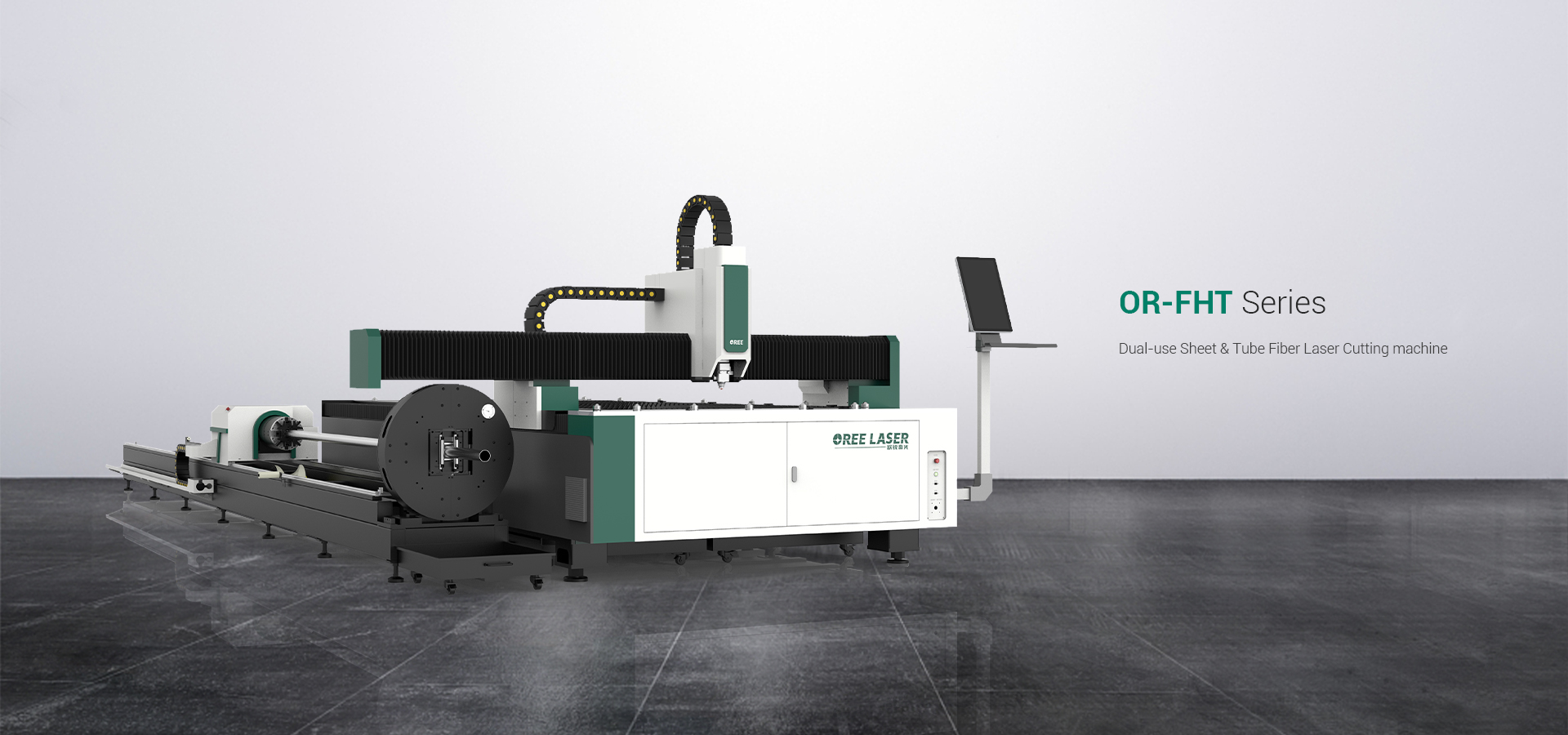

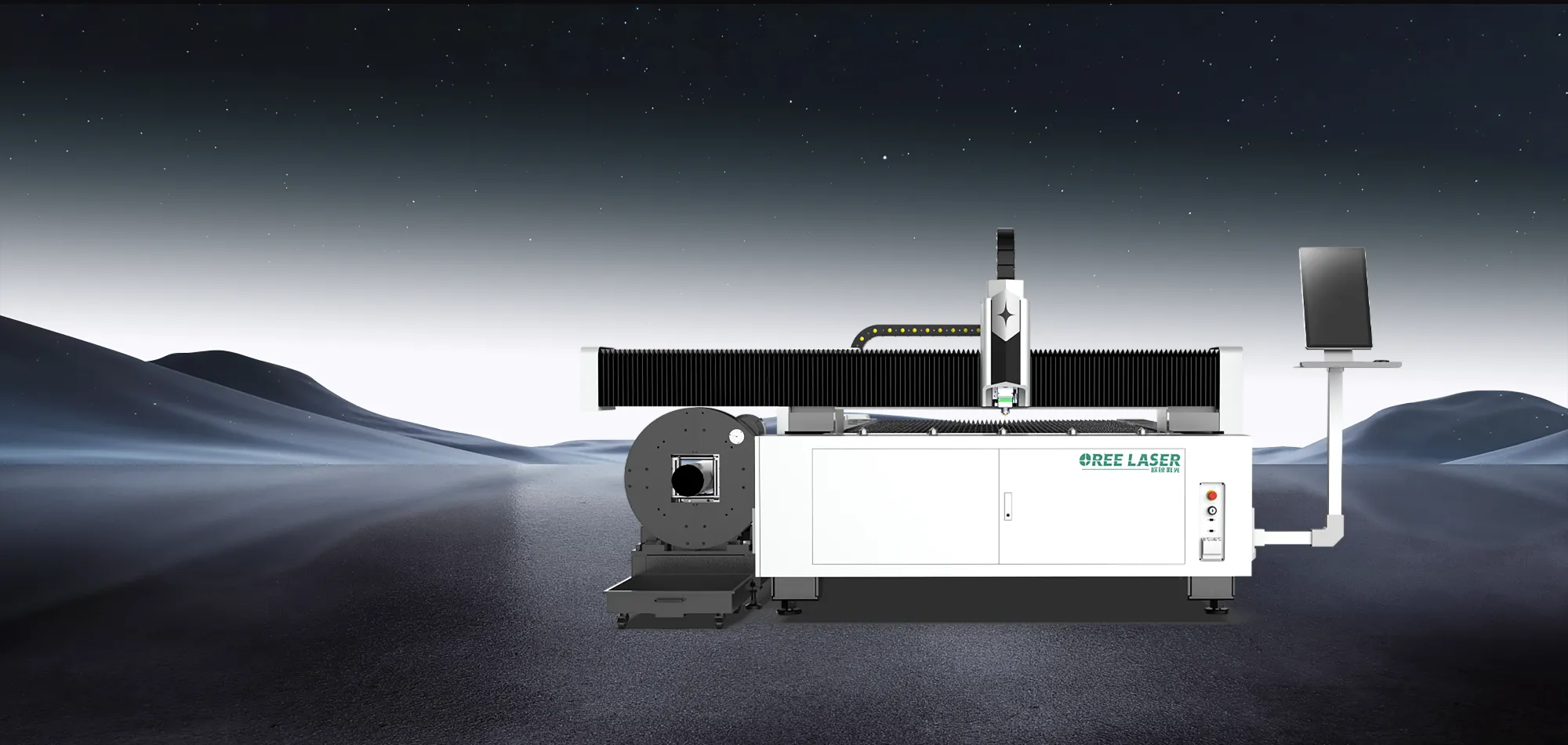

Dual-use Sheet & Tube Fiber Laser Cutting Machine OR-FHT

The sheet and tube fiber cutting machine realizes the cutting of two different materials shapes on the same machine tool. It adopts a cast iron bed, a rack and pinion drive system, and a professional cutting CNC system, and it is easy to operate and simple to maintain. Besides that the strict assembly process ensures the stable operation of the CNC laser cutting machine with high precision. Optical fiber laser cutting machine with imported top-grade accessories, which provides users with powerful cutting ability and efficiency. Therefore it is the best choice for the economical plate and pipe processing.

mm inch

Model	OR-FH 3015T
Working Area	3000*1500mm
Laser Power	1000w~6000w
Max Speed	120m/min

Request an offer

Looking for other machine sizes? Product overview

SEE HOW IT WORKS

Push the “PLAY” button and see the video

Product Advantage

Dual-use Sheet & Tube Fiber Laser Cutting Machine

The fifth-generation aviation aluminum alloy beam

In order to improve the beam structure and optimize its dynamic performance, while ensuring the stability of the beam structure, the fourth-generation aviation aluminum alloy beam was developed using finite element analysis. The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Laser head

The laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable. It can achieve "online" measurement during the production process, and the measurement is accurate and rapid.

Intelligent control system

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Automatic Lubrication System OR-FHT

Whole body layout, automatic lubrication of guide rails and racks.

High rigidity super heavy steel plate welded bed

The raw material of the welded bed is 12mm thick steel plate. The finite element analysis assists in optimizing the structure of the bed, and the groove welding method is used to achieve equal strength butt joints to ensure the good mechanical properties of the bed. After stress annealing and natural aging treatment to eliminate internal stress, maintain the extremely high stability and cutting accuracy of the bed.

【1】The maximum load per square meter of the operating platform is 200KGS;

【2】Effectively resist the huge inertia brought to the bed by high-frequency and high-speed commutation, and the bed is more stable;

【3】The shape variables of the rail mounting surface is small, generally around 0.02mm/M (read as: 0.02mm per meter)

High rigidity super heavy steel plate welded bed

Technical Data

mm inch

	OR-FH 3015T	OR-FH 4020T	OR-FH 6025T	OR-FH 6020T
Working Area	3000*1500mm	4000*2000mm	6000*2500mm	6000*2000mm
Accuracy of Positioning	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repeat Repositioning Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Maximum Speed	120m/min	120m/min	120m/min	120m/min
Laser Power	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w
Working Table	Blade table	Blade table	Blade table	Blade table
Maximum Acceleration	1.2G	1.2G	1.2G	1.2G

Datasheet

	OR-FH 3015T	OR-FH 4020T	OR-FH 6025T	OR-FH 6020T
Working Area	118*59inch	157*79inch	236*98inch	236*78inch
Accuracy of Positioning	±0.0011811 inch	±0.0011811 inch	±0.0011811 inch	±0.0011811 inch
Repeat Repositioning Accuracy	±0.0007874 inch	±0.0007874 inch	±0.0007874 inch	±0.0007874 inch
Maximum Speed	4724inch/min	4724inch/min	4724inch/min	4724inch/min
Laser Power	1000w~6000w	1000w~6000w	1000w~6000w	1000w~6000w
Working Table	Blade table	Blade table	Blade table	Blade table
Maximum Acceleration	1.2G	1.2G	1.2G	1.2G
