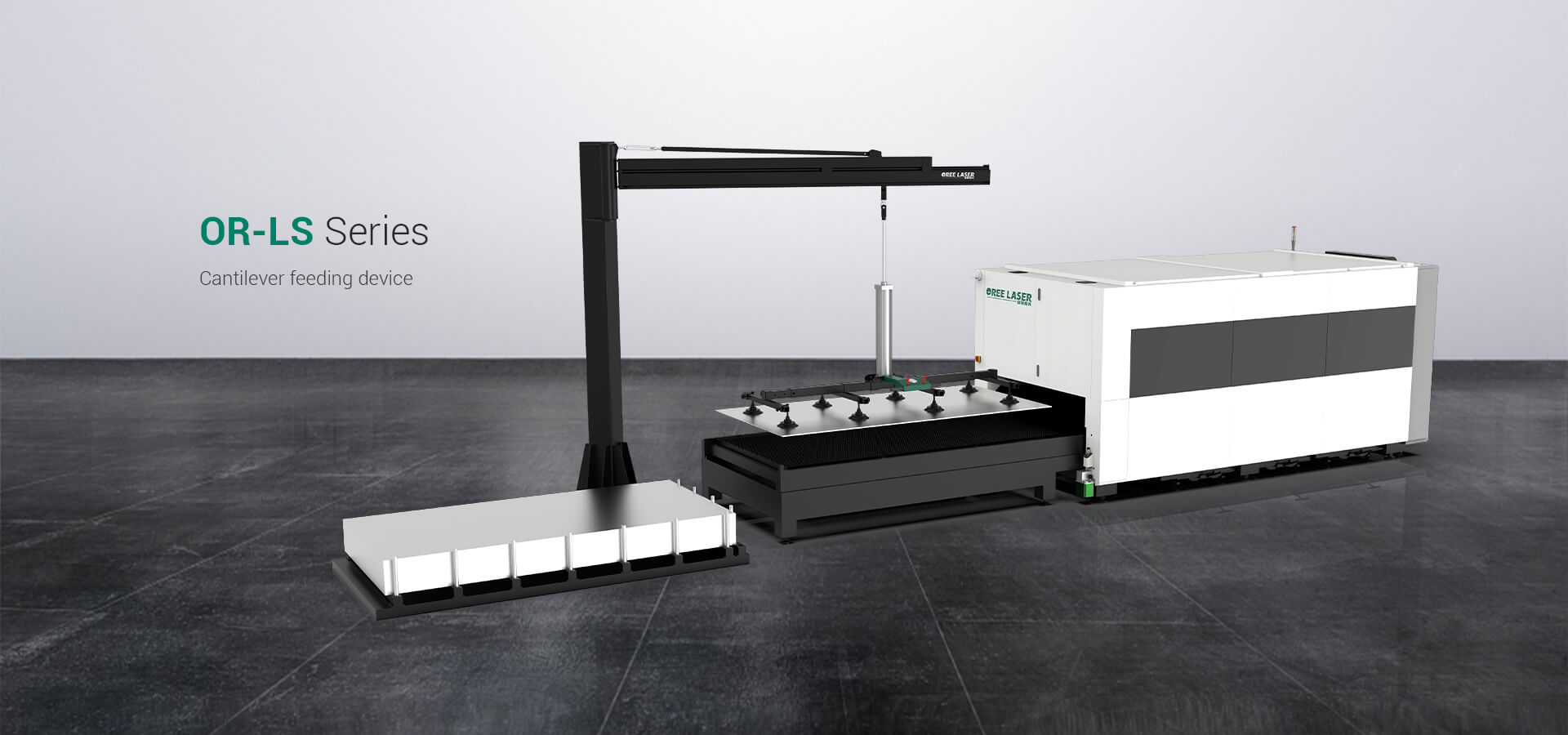

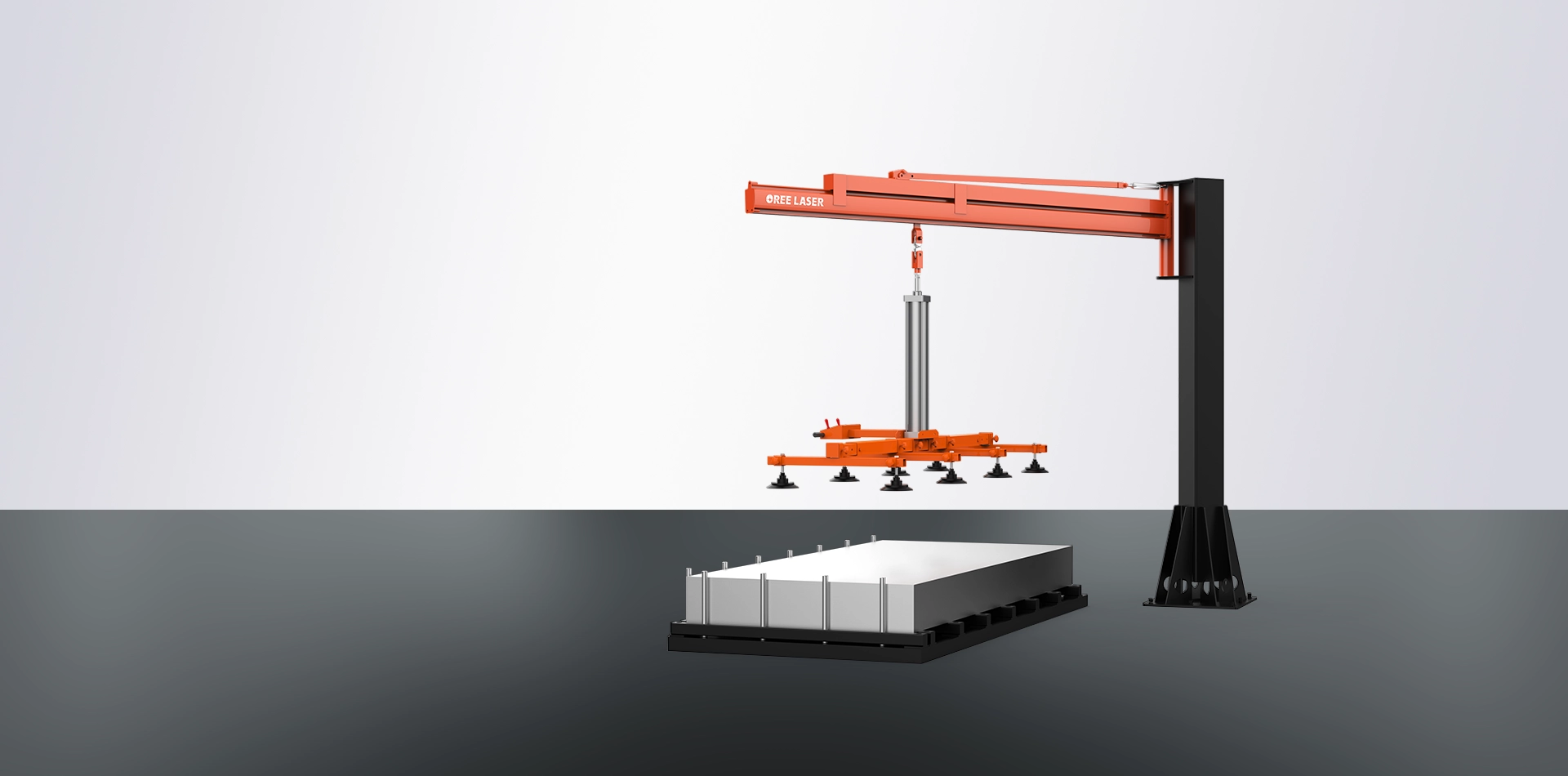

Cantilever Loading Machine OR-LS

Cookies

We use cookies to enhance your browsing experience, serve personalized ads or content. By clicking " Accept cookies ", you consent to our use of cookies. Further information on cookies can be found in our Privacy Policy.

Accept cookies

Reject All

CHOOSE YOUR LANGUAGE

Flexible and Convenient

Modular assembly structure, flexible and light weighted, easy to install, reduce space waste, it can carry a maximum size of 3*1.5m and load-bearing up to 500kg.

Economical and Efficient

Ergonomic design, feeding operation is simple, handling process is easy, fast, coherent and efficient.

Safe Protection

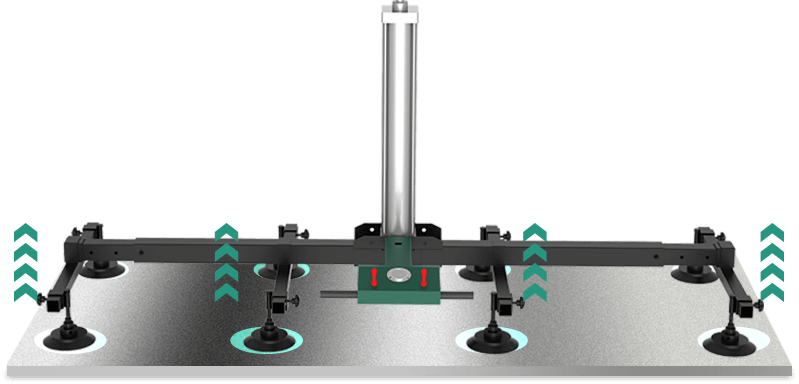

Equipped with air cut-off protection and automatic braking, when the sudden power failure, the plate will remain in the original position and not fall, to protect personal safety.

Technical Parameter

inch

Model	OR-LS3015
Feeding Sheet Thickness	1-10mm
Maximum Feeding Width	3000*1500mm
Minimum Loading Format	1250*1250mm
Maximum Sheet Weight	500kg

Model	OR-LS3015
Feeding Sheet Thickness	0.039-0.39inch
Maximum Feeding Width	118*59mm
Minimum Loading Format	49*49mm
Maximum Sheet Weight	500kg

Cutting Sample

If you want a price, fully catalogue or other informations, pls contact us
