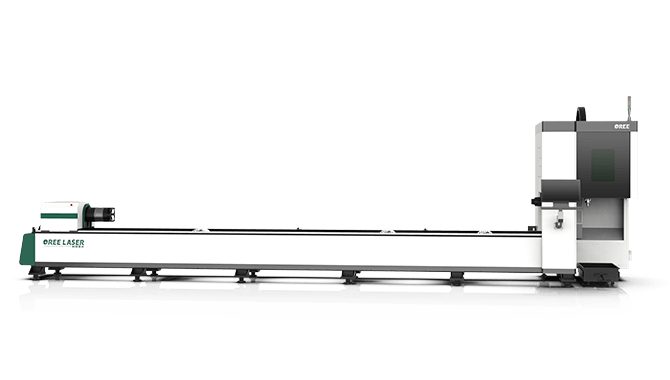

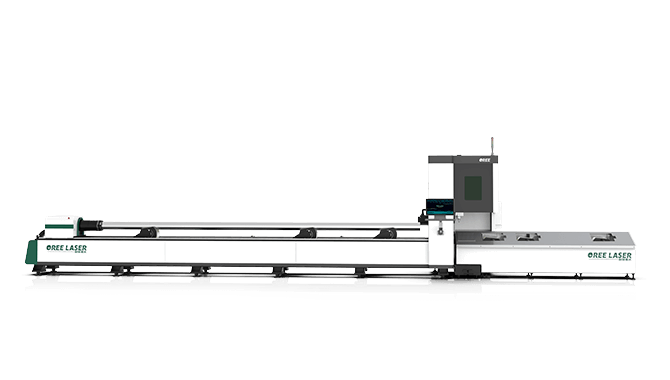

Fully automatic self-centering pneumatic chuck
The two-way pneumatic chuck tube automatically locates the center, extends the transmission structure to improve stable operation, and increases the jaws to save materials.
Visible enclosure for "movement and static separation"
The ingenious separation of the feeding area, the unloading area and the pipe cutting area is realized, which reduces the mutual interference of different areas, and the production environment is safe and stable.
Pneumatic roller support
The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.
High precision linear module beam
Movement repeatability accuracy ±0.01mm Base reference parallelism≤±0.02mm
One-piece Bed Frame
Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.
Product Video
Technical Parameter
mm
inch
Model
OR-TL 6016 OR-TL 6020
Effective Cutting Diameter Of Round Tube
φ16mm-φ165mm φ10mm-φ225mm
Effective Cutting Diameter Of Square Tube
φ16mm-φ165mm φ10mm-φ225mm
Positioning Accuracy
±0.05mm ±0.05mm
Repeat Positioning Accuracy
±0.01mm ±0.01mm
Laser Output Power
1000w/1500w/2000w/3000w 1000w/1500w/2000w/3000w
Maximum Simultaneous Positioning Speed
80m/min 80m/min
Maximum Acceleration
0.8G 0.8G
Model
OR-TL 6016 OR-TL 6020
Effective Cutting Diameter Of Round Tube
φ0.6299inch-φ6.4961inch φ0.3937inch-φ8.8583inch
Effective Cutting Diameter Of Square Tube
φ0.6299inch-φ6.4961inch □0.3937inch-□8.8583inch
Positioning Accuracy
±0.0019685inch ±0.0019685inch
Repeat Positioning Accuracy
±0.0003937inch ±0.0003937inch
Laser Output Power
1000w/1500w/2000w/3000w 1000w/1500w/2000w/3000w
Maximum Simultaneous Positioning Speed
3149.606in/min 3149.606in/min
Maximum Acceleration
0.8G 0.8G
Cutting Sample
